Zscaler Security

Introduction

This guide explains how to authenticate the Zscaler Security connector in Swimlane using the following authentication methods:

API Key Authentication

OAuth 2.0 Client Credentials (Zscaler-native)

You will generate credentials in the Zscaler Admin Portal, collect the required identifiers, and configure the connector inside Swimlane.

Prerequisites

Zscaler Access Requirements

You must have administrative access in the Zscaler Admin Portal to:

Create API tokens

Create OAuth clients

View tenant information

Assign API permissions

Required Credentials

During setup, you will collect:

Zscaler API Base URL

Username

Password

API Token

Client ID (OAuth)

Client Secret (OAuth)

Tenant ID

Scope

Authentication Methods Overview

The Zscaler Security connector supports the following authentication methods:

API Key Authentication

OAuth 2.0 Client Credentials (Zscaler-native)

OAuth 2.0 Client Credentials – Scopes

When using OAuth 2.0 Client Credentials authentication, Zscaler requires explicit API scopes to be assigned to the OAuth application.

Scopes determine which Zscaler services and configuration objects the connector can access. Scopes must be provided as an array of strings in the Swimlane asset configuration.

Recommended Scopes

The following scopes are required to support all major actions provided by the Swimlane Zscaler Security connector, including firewall rules, URL categories, IP groups, and activation of changes:

Scope	Required For
zia.policy	Firewall filtering policy rules (create, update, delete), network services, IP source/destination groups. Supports read and write granular access levels.
zia.admin	Activating configuration changes, managing tenant-level configuration. Supports read and write granular access levels.
zia.url	URL lookup, URL categories, blacklist URLs, add/remove URLs from categories. Supports read and write granular access levels.
zia.sandbox	Sandbox MD5 reports and malware analysis. Supports read granular access levels.

Read-Only vs Read-Write Considerations

Most Swimlane actions modify configuration, so read-write access is required.

If your use case is lookup-only, you may restrict scopes to:

zia.url

Zia.sandbox

This will break policy, firewall, and activation actions.

Missing scopes commonly result in 403 Forbidden or insufficient privilege errors.

Scopes must be assigned in the Zscaler Admin Portal to the OAuth App.

After changing scopes, you must re-issue the OAuth token.

Configuration changes will not take effect until the Activate Changes action is executed.

Sources

Zscaler OAuth & API Authentication Overview https://help.zscaler.com/zia/api

Zscaler Internet Access (ZIA) API Documentation https://help.zscaler.com/zia/api/api-overview

Zscaler Admin Portal – OAuth Apps https://help.zscaler.com/zia/configuring-oauth-20

Swimlane Zscaler Security Connector Docs https://docs.swimlane.com/connectors/zscaler-security

Zscaler Setup

Take the following steps to generate an API Token:

Navigate to Administration > API Keys.

Click Generate API Token.

Copy and securely store the generated token.

Take the following steps to create an OAuth Client:

In the Zscaler Admin Portal, navigate to Administration > OAuth Apps.

Click Add OAuth App.

Enter an application name.

Select Client Credentials as the grant type.

Assign required scopes.

Save the application.

Copy the Client ID, Client Secret, and Tenant ID.

Connector Configuration in Swimlane

From the left-hand navigation pane, click ORCHESTRATION and click Assets. Asset homepage opens.

Click the plus icon to open the Configure your Connector Asset window.

Select Zscaler Security from the Asset type list.

Fill in the Asset Settings and Asset Input as shown:

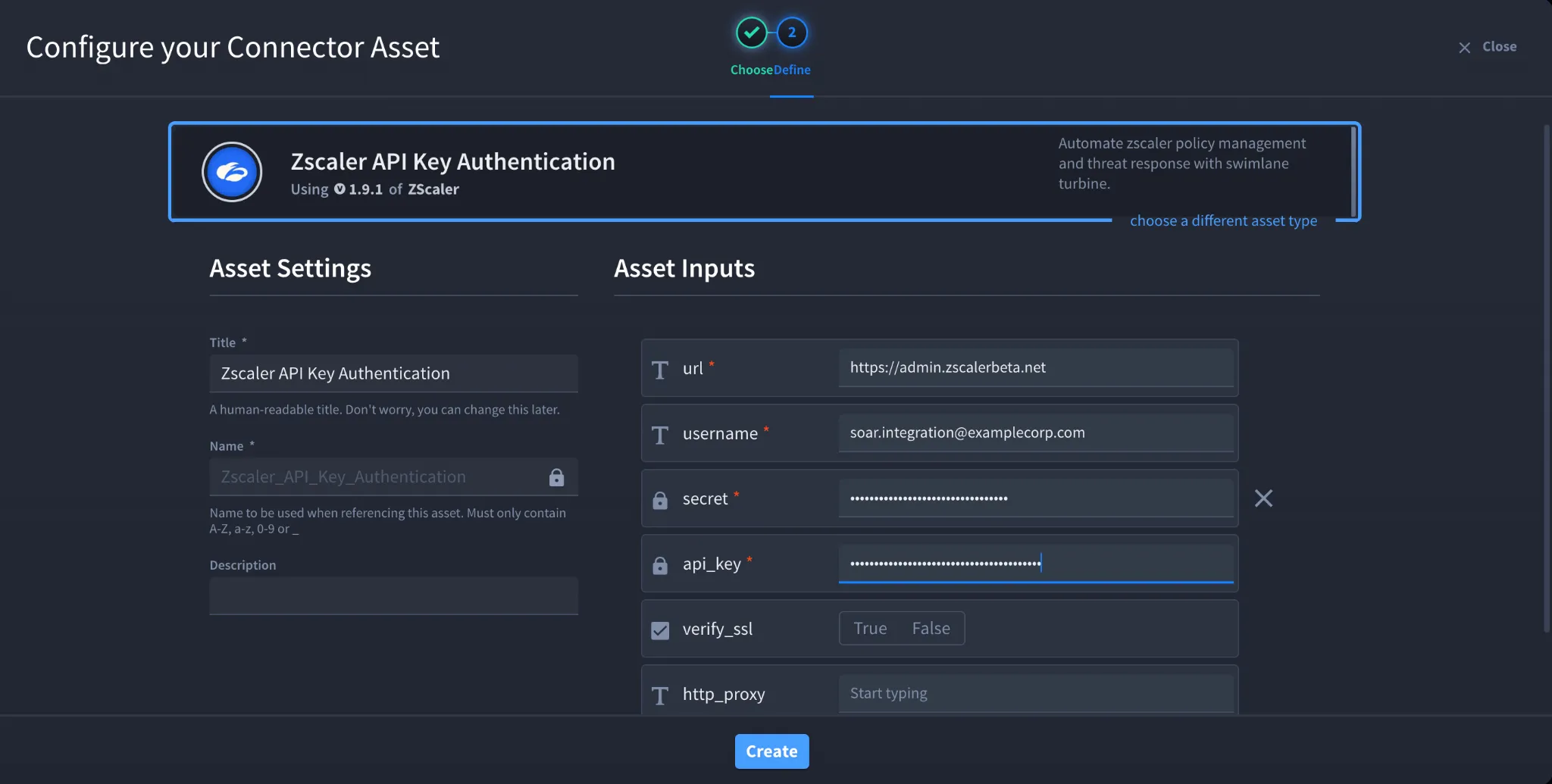

Configuration – API Key Authentication

Field	Description	Required
url	Zscaler API base URL	Yes
username	Zscaler username	Yes
secret	Zscaler password	Yes
api_key	Zscaler API token	Yes
verify_ssl	Enable or disable SSL verification	No
http_proxy	Proxy configuration	No

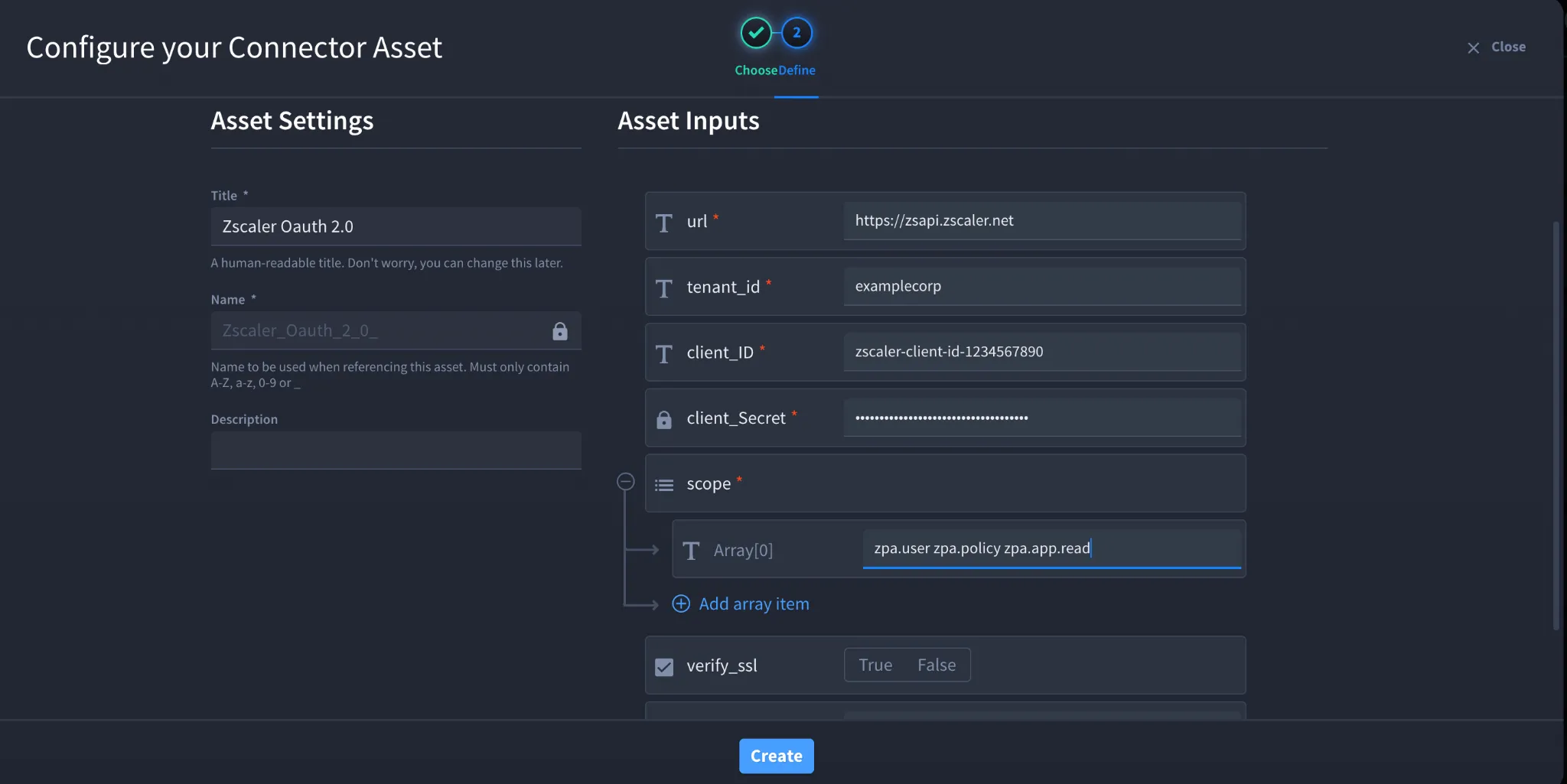

Configuration – OAuth 2.0 Client Credentials

Field	Description	Required
url	Zscaler API base URL	Yes
tenant_id	Zscaler tenant ID	Yes
client_id	OAuth client ID	Yes
client_secret	OAuth client secret	Yes
scope	OAuth permission scopes	Yes
verify_ssl	Enable or disable SSL verification	No
http_proxy	Proxy configuration	No

Troubleshooting

Authentication failures may occur due to:

Invalid API token or OAuth credentials

Incorrect base URL

Insufficient permissions or scopes

SSL or proxy configuration issues

Verify credentials and permissions in the Zscaler Admin Portal.

You have successfully authenticated the Zscaler Security connector in Swimlane using Zscaler-native authentication.
