Rapid7 InsightIDR — Alert Ingestion Guide

This guide covers two approaches for ingesting Rapid7 InsightIDR investigations and alerts into Swimlane Turbine, normalized to Turbine Schema format:

Connector — Use the Rapid7 InsightIDR V2 connector actions directly in a playbook for full control over your workflow.

Component — Use the Rapid7 InsightIDR Alert Ingestion component for a turnkey webhook-based pipeline with investigation enrichment, observable extraction, and Turbine Schema emission.

Both approaches deliver alerts in Swimlane's Turbine Schema format. One downstream playbook handles alerts from any source.

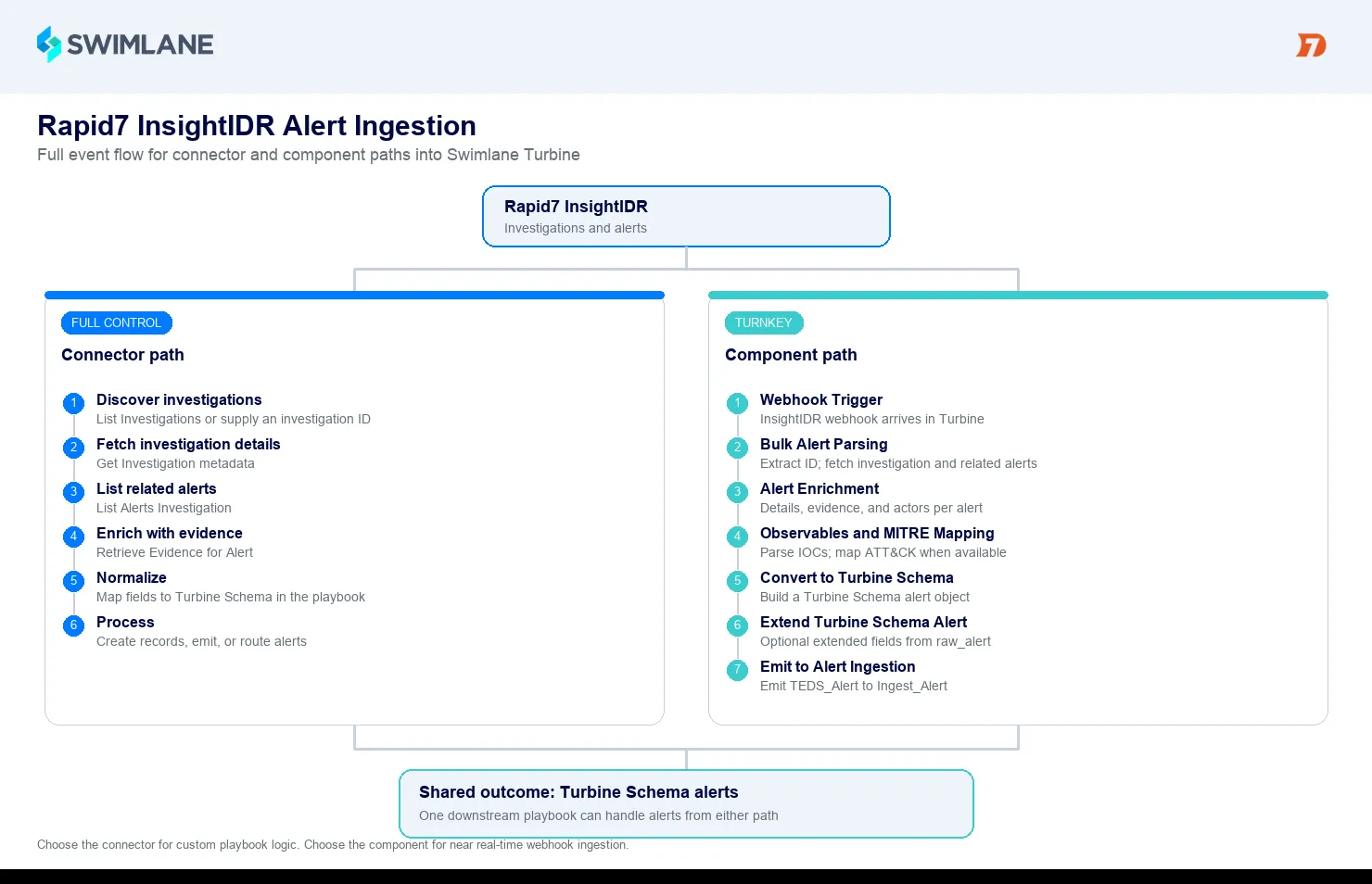

Ingestion Flow

Key Capabilities

Unified alert format — Every InsightIDR investigation/alert is normalized to Turbine Schema, enabling cross-vendor playbooks and dashboards.

Investigation enrichment — Fetches investigation details, related alerts, evidence, and actors via the InsightIDR API before ingestion.

Observables and MITRE ATT&CK — Parses IOCs from enriched alert content and maps MITRE ATT&CK tactics and techniques when available.

Near real-time webhook ingestion — Investigation webhooks trigger enrichment and emission as investigations are created or updated in InsightIDR (no polling loop required for the primary component flow).

Using the Connector

The Rapid7 InsightIDR V2 connector provides investigation and alert actions you can compose into a custom ingestion playbook: List Investigations, Get Investigation, List Alerts Investigation, Get Product List Alerts by Investigation, and Retrieve Evidence for Alert. Use this approach when you want full control over your playbook logic and custom processing.

How It Works

Discover investigations — Use List Investigations (or a webhook/sensor that supplies an investigation ID) to identify investigations to process.

Fetch investigation details — Use Get Investigation to retrieve investigation metadata (title, priority, status, timestamps, assignee).

List related alerts — Use List Alerts Investigation (and optionally Get Product List Alerts by Investigation) to retrieve alerts tied to the investigation.

Enrich with evidence — Use Retrieve Evidence for Alert for each alert RRN to pull evidence used for observables and context.

Normalize — Use playbook logic or a transform block to map fields to Turbine Schema format.

Process — Create records, emit to an ingest sensor, or route alerts based on your playbook design.

Connector Setup

Prerequisites

Rapid7 Insight Platform API key with access to InsightIDR investigations and alerts

Your InsightIDR regional API base URL (for example https://us.api.insight.rapid7.com)

The Rapid7 InsightIDR V2 connector installed from the Turbine marketplace

Steps

Create an Asset — In Turbine, create a new Rapid7 InsightIDR V2 asset with your API base URL and X-Api-Key.

Create a Playbook — Create a new playbook with a scheduled trigger (for polling) or a webhook/sensor trigger (for investigation events).

Add Investigation Actions — Add List Investigations and/or Get Investigation to retrieve investigation context.

Add Alert Actions — Add List Alerts Investigation to enumerate alerts for each investigation ID or RRN.

Add Evidence Enrichment — Add Retrieve Evidence for Alert in a loop over alert RRNs when you need IOC and evidence context.

Build Processing Logic — Add playbook steps to normalize alerts to Turbine Schema, create records, and handle errors.

Authentication

The connector authenticates with an InsightIDR Platform API key:

Field	Required	Description
url	Yes	Regional InsightIDR API base URL (for example https://us.api.insight.rapid7.com or https://us2.api.insight.rapid7.com)
X-Api-Key	Yes	Rapid7 Platform API key
verify_ssl	No	Enable or disable SSL verification
http_proxy	No	Optional HTTP(S) proxy

Common regional base URLs:

Region	Base URL
US	https://us.api.insight.rapid7.com
US2	https://us2.api.insight.rapid7.com
EU	https://eu.api.insight.rapid7.com
CA	https://ca.api.insight.rapid7.com
AU	https://au.api.insight.rapid7.com

Using the Component

The Rapid7 InsightIDR Alert Ingestion component (rapid7_insightidr_alert_ingestion) provides a turnkey pipeline that receives InsightIDR investigation webhooks, enriches related alerts via the InsightIDR API (investigation details, alerts, evidence, and actors), normalizes each alert to Turbine Schema, and emits Turbine Schema alerts to the Swimlane Ingest_Alert sensor. Use this approach when you want near real-time ingestion with enrichment and standardized output out of the box.

What the Component Adds

Webhook-driven ingestion — Starts from an InsightIDR investigation/alert webhook payload; no lookback or page-limit inputs are required for the primary flow.

Bulk investigation enrichment — Extracts the investigation ID, then calls InsightIDR for investigation details and related alerts (Get Investigation, List Alerts Investigation).

Per-alert enrichment — Loops over investigation alerts to retrieve details, evidence (Retrieve Evidence for Alert), and actors when RRNs are present.

Observables and MITRE mapping — Parses IOCs and maps MITRE ATT&CK techniques where available.

Turbine Schema emission — Builds a Turbine Schema alert, optionally applies extended field mappings from raw_alert, and emits TEDS_Alert / Extended_Fields to the Ingest_Alert sensor.

Component Setup

Prerequisites

Rapid7 Insight Platform API key with access to InsightIDR investigations and alerts

The Rapid7 InsightIDR V2 connector installed from the Turbine marketplace

The Rapid7 InsightIDR Alert Ingestion component imported from the marketplace

A Turbine webhook sensor endpoint configured to receive InsightIDR investigation webhooks

InsightIDR configured to send investigation webhooks to that Turbine webhook URL

Steps

Create an Asset — In Turbine, create a new Rapid7 InsightIDR V2 asset with your regional API base URL and X-Api-Key.

Install the Component — Import the Rapid7 InsightIDR Alert Ingestion component from the marketplace.

Configure the Webhook Sensor — Ensure a Turbine custom webhook sensor is enabled and note its URL.

Configure InsightIDR Webhooks — In Rapid7 InsightIDR, create or update an investigation webhook (or automation) that posts investigation/alert events to the Turbine webhook URL.

Assign the Asset — Attach the Rapid7 InsightIDR V2 asset to the component so enrichment actions can call the InsightIDR API.

Wire Downstream Processing — Connect playbooks or solutions that subscribe to the Ingest_Alert sensor to consume Turbine Schema alerts.

Component Inputs

Variable	Default	Description
Webhook payload (alert)	—	Required. InsightIDR investigation/alert JSON delivered by the webhook sensor
Rapid7 InsightIDR asset	—	Required. Connector asset with InsightIDR API URL and API key used for enrichment

Error Handling

Scenario	Behavior
Webhook / parsing failures	Errors stop the bulk alert parsing path; failed runs are logged in Turbine
Investigation / alert API failures	Connector errors from InsightIDR enrichment actions are logged; dependent enrichment steps may not complete
Evidence / actor retrieval failures	Per-alert enrichment may skip or fail for individual RRNs while other alerts continue in the loop
Emit failures	Failures emitting to Ingest_Alert are logged; successfully built Turbine Schema alerts earlier in the flow are not re-emitted automatically

Recommended Configuration

Scenario	Trigger	Notes
Production (near real-time)	InsightIDR investigation webhook → Turbine webhook sensor	Primary recommended path for the component
Backfill / catch-up	Scheduled playbook using connector List Investigations	Use time filters on the connector; normalize manually or feed IDs into enrichment logic
Testing	Manual webhook POST of a sample investigation payload	Validate asset credentials and Ingest_Alert emission before enabling production webhooks

Turbine Schema Output

Both the connector (when you normalize in-playbook) and the component produce alerts in this standardized format. The component emits each alert wrapped for the ingest sensor:

Field	Type	Description
alert_uid	string	Investigation or alert identifier
alert_title	string	Investigation / alert title
alert_description	string	Investigation / alert description
alert_severity	string	CRITICAL, HIGH, MEDIUM, LOW, or other mapped values
alert_provider	string	"Rapid 7 Insight IDR"
alert_organization	string	Organization name
alert_categories	array	Categories such as triggering event type
alert_created_timestamp	string	RFC 3339 creation time
alert_start_timestamp	string	When activity began
alert_end_timestamp	string	When activity ended
alert_ingested_timestamp	string	When the alert was ingested by Turbine
alert_permalink	string	Direct link to the investigation/alert in InsightIDR
alert_impacted_hostnames	array	Affected hostnames
alert_impacted_ip_addresses	array	Affected IP addresses
alert_impacted_usernames	array	Affected user accounts
alert_rules	array	Objects with rule_id, rule_name, rule_description, rule_type
alert_mitre_attack_tactic_technique	array	Tactics and techniques with UIDs and names
observables	array	Objects with observable_type, observable_value, provider, and optional enrichments
signal_source	string	Source signal type (for example "Alert")
raw_alert	object	Complete original InsightIDR investigation/alert context

Sample Output

{
  "TEDS_Alert": {
    "alert_uid": "investigation_id",
    "alert_title": "Investigation / alert title",
    "alert_description": "Investigation / alert title",
    "alert_severity": "HIGH",
    "alert_created_timestamp": "2026-07-20T15:09:17.516Z",
    "alert_start_timestamp": "2026-07-20T15:00:00.000Z",
    "alert_end_timestamp": "2026-07-20T15:08:00.000Z",
    "alert_ingested_timestamp": "2026-07-20T15:09:38.367Z",
    "alert_provider": "Rapid 7 Insight IDR",
    "alert_organization": "Organization name",
    "alert_categories": ["triggering_event_type"],
    "alert_impacted_hostnames": ["host1"],
    "alert_impacted_ip_addresses": [],
    "alert_impacted_usernames": ["user1"],
    "alert_permalink": "https://insight.rapid7.com/...",
    "alert_rules": [
      {
        "rule_id": "...",
        "rule_name": "...",
        "rule_description": "...",
        "rule_type": "..."
      }
    ],
    "alert_mitre_attack_tactic_technique": [
      {
        "tactics": [{"uid": "TA0001", "name": "..."}],
        "technique": {"uid": "T1234", "name": "..."},
        "version": ""
      }
    ],
    "observables": [
      {
        "observable_type": "ipv4 public",
        "observable_value": "...",
        "observable_primary_provider": "Rapid 7 Insight IDR",
        "observable_primary_verdict": "...",
        "observable_primary_timestamp": "2026-07-20T15:09:17.516Z",
        "observable_enrichments": []
      }
    ],
    "signal_source": "Alert",
    "raw_alert": {}
  },
  "Extended_Fields": {}
}

Connector Reference

For the full list of actions, input/output schemas, and authentication setup, see the Rapid7 InsightIDR V2 connector documentation.
