Microsoft Teams

Introduction

This guide explains how to authenticate the Microsoft Teams connector in Swimlane using one of the following authentication methods:

OAuth 2.0 Client Credentials (Application permissions)

OAuth 2.0 Password Grant (Delegated permissions)

OAuth 2.0 Refresh Token Grant (Delegated permissions with MFA)

You will create an Azure app, assign permissions, collect the required identifiers, and configure the connector inside Swimlane.

Prerequisites

Azure Access Requirements

Assign API permissions (Application + Delegated)

Grant admin consent

View tenant and directory information

Create client secrets

Required Credentials

Client ID

Client Secret

Tenant ID

Token URL

Scope

(For delegated auth) Username and Password

(For refresh token flow) Refresh Token

Authentication Methods Overview

OAuth 2.0 Client Credentials

Used for non-MFA accounts and for most server-to-server automations.

You will need:

Client ID

Client Secret

Tenant ID

Token URL (must include Tenant ID)

Scope(s)

OAuth 2.0 Password Grant (Delegated)

Used when the connector must act on behalf of a user.

You will need:

Username

Password

Client ID

Client Secret (optional)

Token URL

Scope(s)

OAuth 2.0 Refresh Token Grant (Delegated + MFA)

Use when the Teams or Microsoft 365 account has MFA enabled.

You will need:

Client ID

Client Secret

Refresh Token

Tenant ID

Redirect URI (added during Azure App Registration)

Azure Setup

Register the application

Go to Azure Portal > Azure Active Directory > App registrations.

Click New registration.

Enter an application name.

Select Accounts in this organizational directory only.

Click Register.

Assign API permissions

Open API permissions.

Click Add a permission.

Select Microsoft Graph.

Add the required permissions based on your Microsoft Teams actions:

ChannelMember.ReadWrite.All

TeamMember.ReadWrite.All

Channel.Create

Channel.Create.Group

Directory.ReadWrite.All

Group.ReadWrite.All

Team.Create

Teamwork.Migrate.All

Click Add permissions.

Click Grant admin consent for your organization.

Create a Client Secret

Navigate to Certificates & secrets.

Click New client secret.

Add description and expiration.

Click Add.

Copy and save the secret value.

Collect required identifiers

Client ID

Tenant ID

Password Grant Requirements

oauth2_username → Azure username

oauth2_password → Azure password

If MFA is enabled, use Refresh Token Flow instead.

Refresh Token Flow Setup

Add a Redirect URI (Platform: Web) during registration.

Assign Delegated Permissions.

Use the Swimlane-provided Python script to generate a refresh token.

Connector Configuration in Swimlane

Log into Turbine.

Click ORCHESTRATION.

Click Assets.

Click the + icon to create a new asset.

Select Microsoft Teams from the Asset Type list.

Fill in the Asset Settings and Asset Input as shown as per your authentication method:

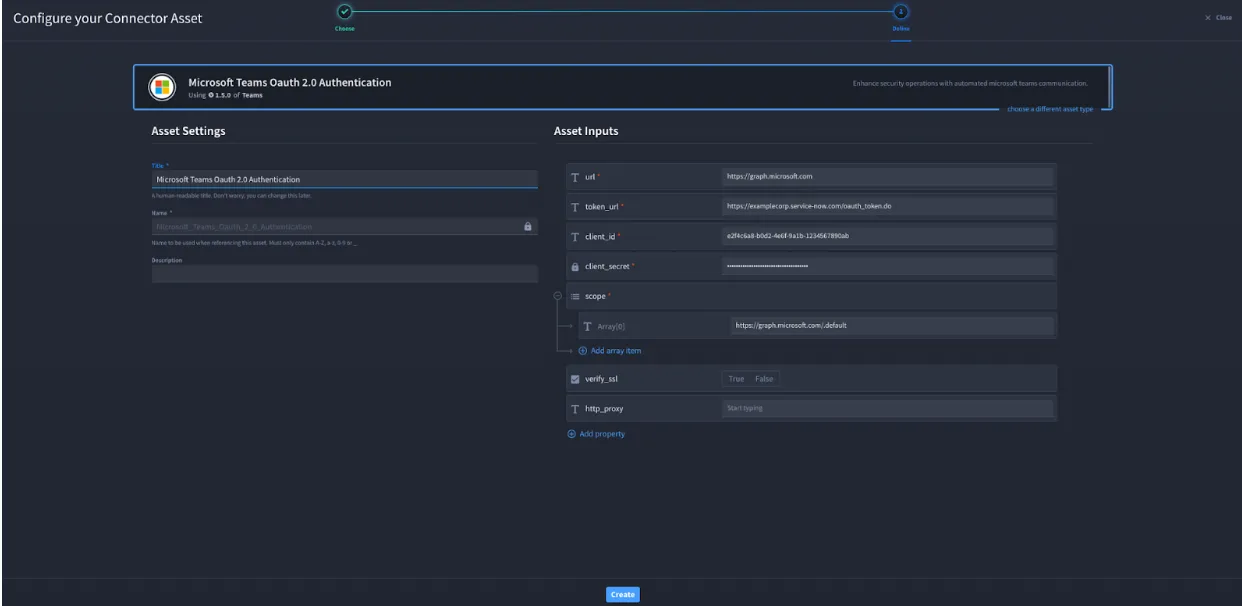

Configuration - Client Credentials

Field	Description	Required
url	API endpoint	Required
token_url	Token URL	Required
client_id	Client ID	Required
client_secret	Client Secret	Required
scope	Permission scopes	Required
verify_ssl	SSL verification	Optional
http_proxy	Proxy details	Optional

Fields with * marks are required.

Token URL format:

https://login.microsoftonline.com/{tenant_id}/oauth2/v2.0/token

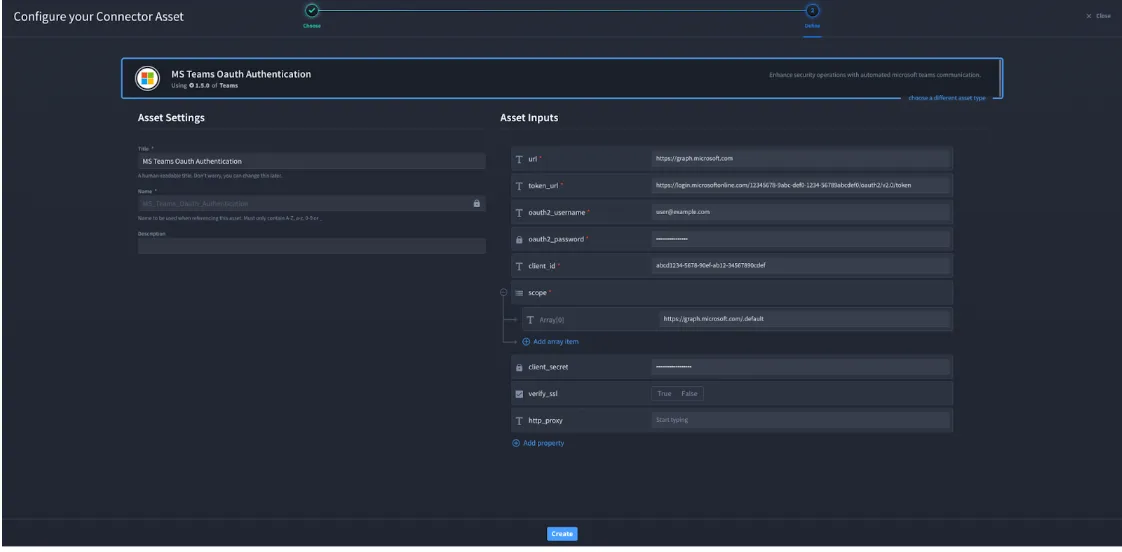

Configuration - Password Grant (Delegated Authentication)

Field	Description	Required/Optional
url	API endpoint	Required
token_url	Token URL	Required
oauth2_username	Username	Required
oauth2_password	Password	Required
client_id	Client ID	Required
client_secret	Client Secret	Optional
scope	Delegated scopes	Required
verify_ssl	SSL verification	Optional
http_proxy	Proxy details	Optional

Fields with * marks are required.

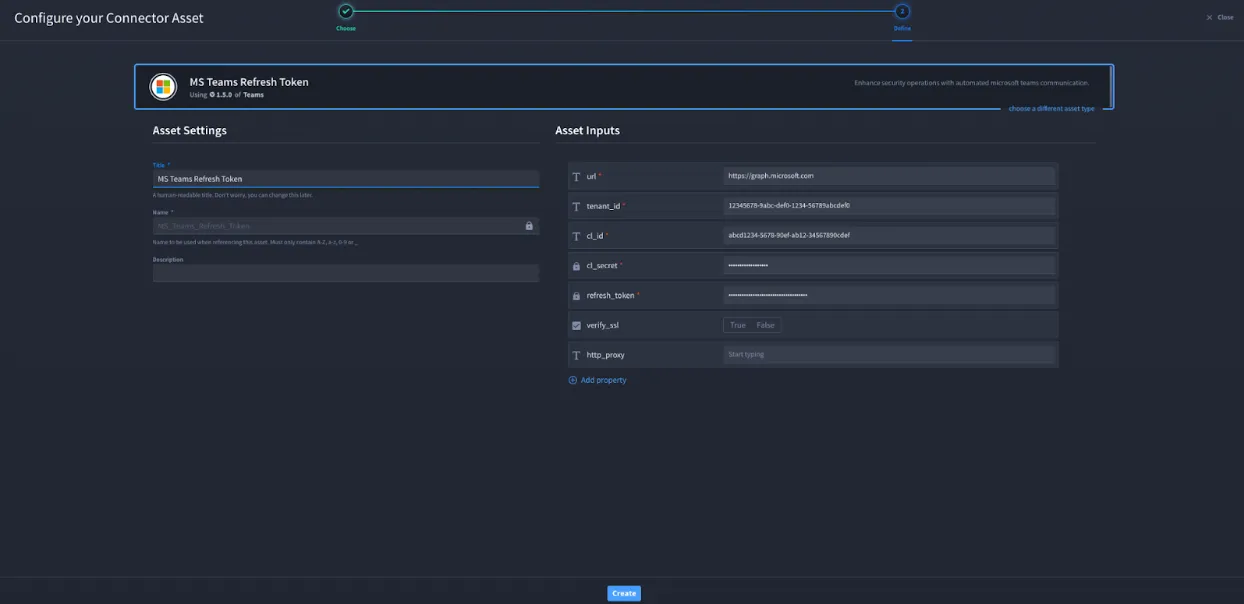

Configuration - Refresh Token Grant (Delegated + MFA)

Field	Description	Required/Optional
url	API endpoint	Required
tenant_id	Tenant ID	Required
cl_id	Client ID	Required
cl_secret	Client Secret	Required
refresh_token	Refresh Token	Required
verify_ssl	SSL verification	Optional
http_proxy	Proxy details	Optional

Fields with * marks are required.

Click Create.

Troubleshooting

Error: 403 Forbidden

Occurs when:

Missing Graph or Teams permissions

Missing admin consent

Incorrect tenant or token URL

Using Application permissions where Delegated is required

Fix:

Re-grant admin consent

Verify permissions

Ensure token URL includes the correct tenant ID

You have successfully authenticated the Microsoft Teams Connector using one of the supported OAuth flows.
