Microsoft Defender

Introduction

This guide explains how to authenticate the Microsoft Defender connector in Swimlane using OAuth 2.0 Client Credentials.

You will create an Azure application, assign required API permissions, collect necessary identifiers, and configure the connector in Swimlane.

Azure Access Requirements

You must have Azure permissions to:

Assign API permissions

Grant admin consent

Generate client secrets

Required Credentials

During setup, you will collect:

Client ID

Client Secret

Token URL

Base Defender API URL

Defender permissions scope

Azure Setup

Take the following steps to register the application:

Navigate to Azure Portal > Azure Active Directory > App Registrations.

Click New Registration.

Enter an application name.

Choose Accounts in this organizational directory only.

Click Register.

Take the following steps to assign API permissions:

Open API Permissions tab.

Click Add a permission.

Select APIs my organization uses.

Search for WindowsDefenderATP.

Add the required Application permissions, such as:

Alert.Read.All

Alert.ReadWrite.All

Machine.Read.All

Machine.ReadWrite.All

AdvancedQuery.Read.All

Click Add permissions.

Click grant admin consent.

Take the following steps to generate a Client Secret:

Navigate to Certificates & Secrets.

Click New client secret.

Add description and expiration.

Copy and save the value. This saved value is Client Secret.

Take the following step to collect required Identifiers:

From App Registration>Overview, copy:

Client ID

Tenant ID

Connector configuration in Swimlane

From the left-hand navigation pane, click ORCHESTRATION and click Assets. Asset homepage opens.

Click the plus icon to open the Configure your Connector Asset window.

Select Microsoft Defender from the Asset type list.

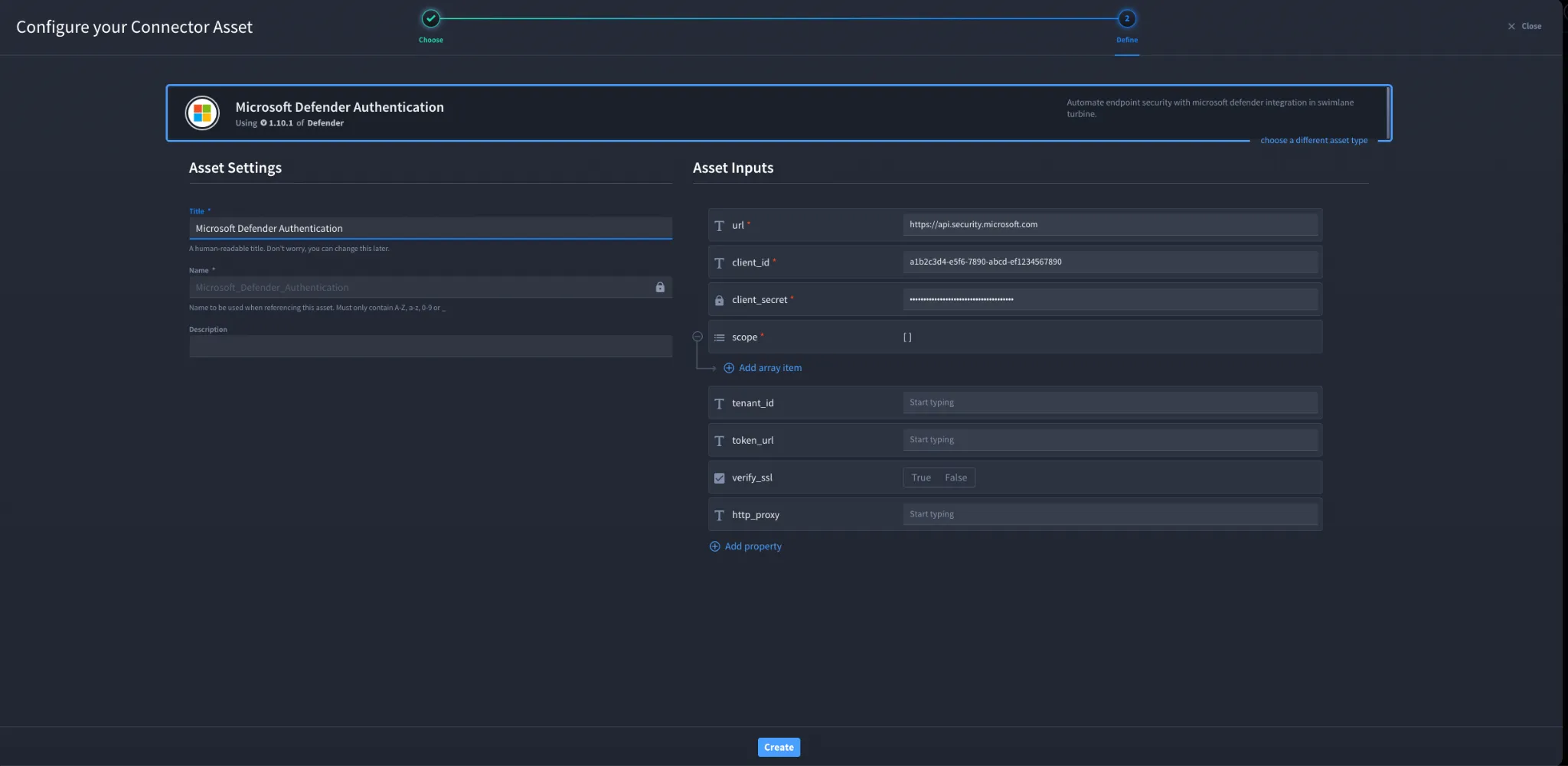

Fill in the Asset Settings and Asset Input as shown:

Field	Description	Required
url	Base Defender API URL	Required
token_url	https://login.microsoftonline.com/{tenant_id}/oauth2/v2.0/token	Required
client_id	Client ID from Azure	Required
client_secret	Client Secret from Azure	Required
scope	Defender permission scopes	Required
verify_ssl	Enable/Disable SSL verification	Optional
http_proxy	Proxy configuration	Optional

Fields with * marks are required.

Click Create.

Troubleshooting

If you encounter 403 Forbidden error,

Ensure that admin consent is granted.

Check for all the missing required API permissions.

Check for incorrect permission type (Application vs Delegated).

If you encounter 401 Unauthorized error,

Check whether you have entered the correct Client Secret.

Double check Tenant ID.

Ensure the Token URL is formatted correctly.

If you encounter API errors during action execution,

Check if permission for that specific Defender API was added.

Ensure the Token includes required scopes.

You have successfully authenticated the Microsoft Azure Sentinel Connector in Swimlane.
