Configure Threat Intelligence Enrichment Integration

Threat Intelligence Enrichment gathers reputation information from observables, such as IP addresses, domains, URLs, hashes, email addresses, and so on from one or more enrichment providers using enrichment components. Results are aggregated in Threat Intelligence records, and displayed in Case and Incident Management records as well. Every observable type has a Primary Integlligence Provider (PIP) which is the canonical source of truth for reputation verdict, permalinks, and so on for that observable type.

Prerequisites

Before configuring Threat Intelligence Enrichment:

Ensure you have access to the SOC Solutions Bundle playbooks

Have enrichment provider credentials and assets configured

Understand which observables you want to enrich (IPs, domains, URLs, hashes, etc.)

Configuration Steps

Step 1: Navigate to Components

Navigate to Orchestration in the Swimlane platform.

Click on Components.

Locate and open the SOC - Enrich Observables component (or SOC - Enrich Observable depending on your version).

Step 2: Configure Enrichment Sources

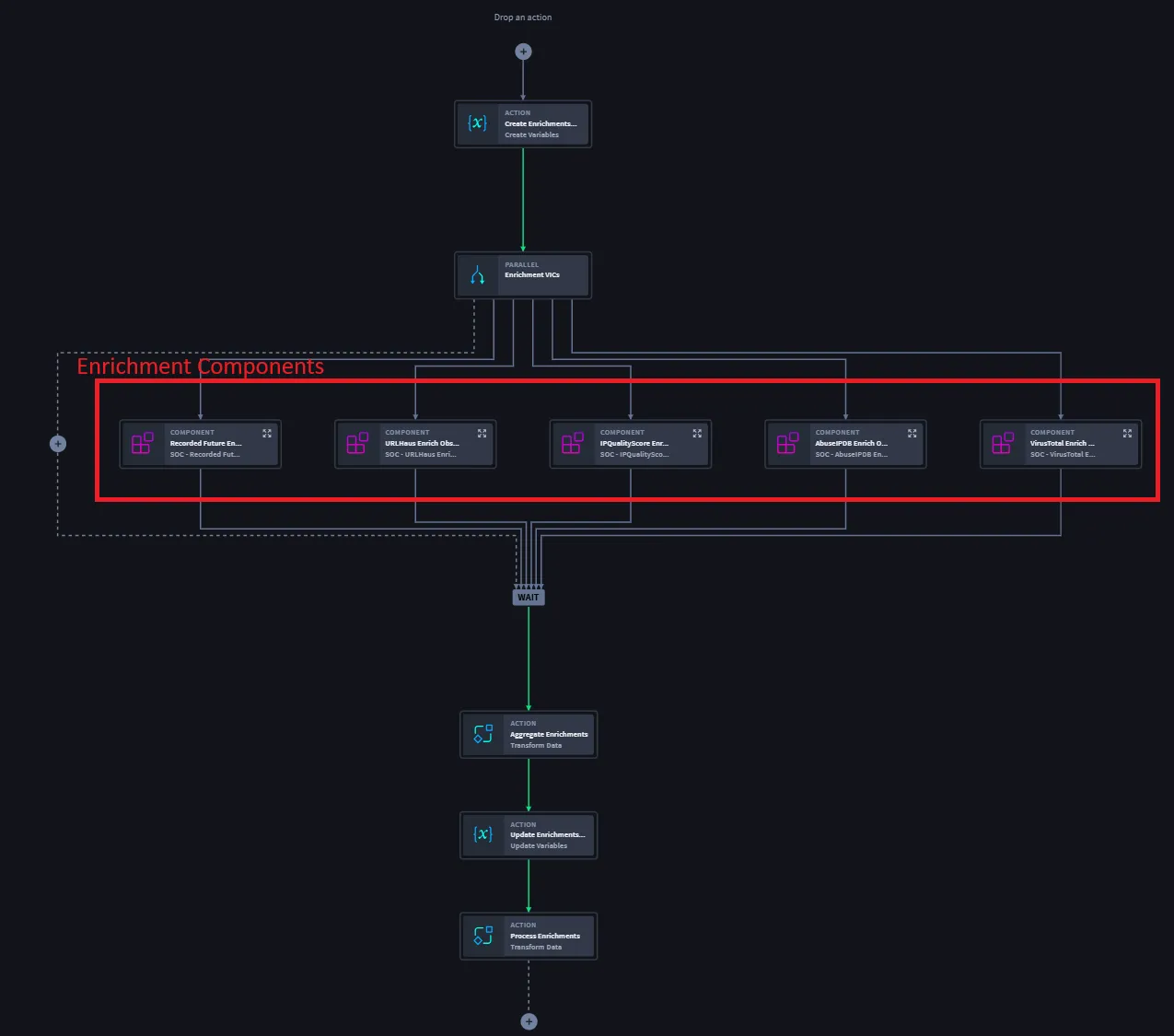

The component uses a Parallel node to run multiple enrichment sources simultaneously. You need to configure which enrichment sources to use:

2.1: Remove Unused Enrichment Sources

Open the SOC - Enrich Observables component.

Navigate to the Parallel node in the component workflow.

Review the existing enrichment sources listed under the Parallel node.

Remove any enrichment sources you are not using:

Click on the enrichment source component

Delete or remove it from the Parallel node

This helps reduce unnecessary API calls and improves performance

2.2: Add New Enrichment Sources

Click Edit on the Parallel node (or add a new component to the Parallel node).

From the Components menu, select the enrichment source component you want to add (e.g., VirusTotal, Recorded Future, URLHaus, etc.).

For each new enrichment source component you add:

Click Edit on the enrichment source component

Navigate to the Inputs configuration

Map inputs.observable as a playbook property:

In the input mapping, select "Playbook Property"

Navigate to or search for inputs.observable

This ensures the observable data flows from the playbook into the enrichment component

Configure any other required inputs (API keys, authentication, etc.) using the component's asset configuration

Note: The inputs.observable property contains the observable object that needs to be enriched. It typically includes:

observable_type: The type of observable (e.g., "ip", "domain", "url", "hash")

observable_value: The actual value to enrich (e.g., "192.168.1.1", "example.com")

observable_metadata: Any additional metadata about the observable

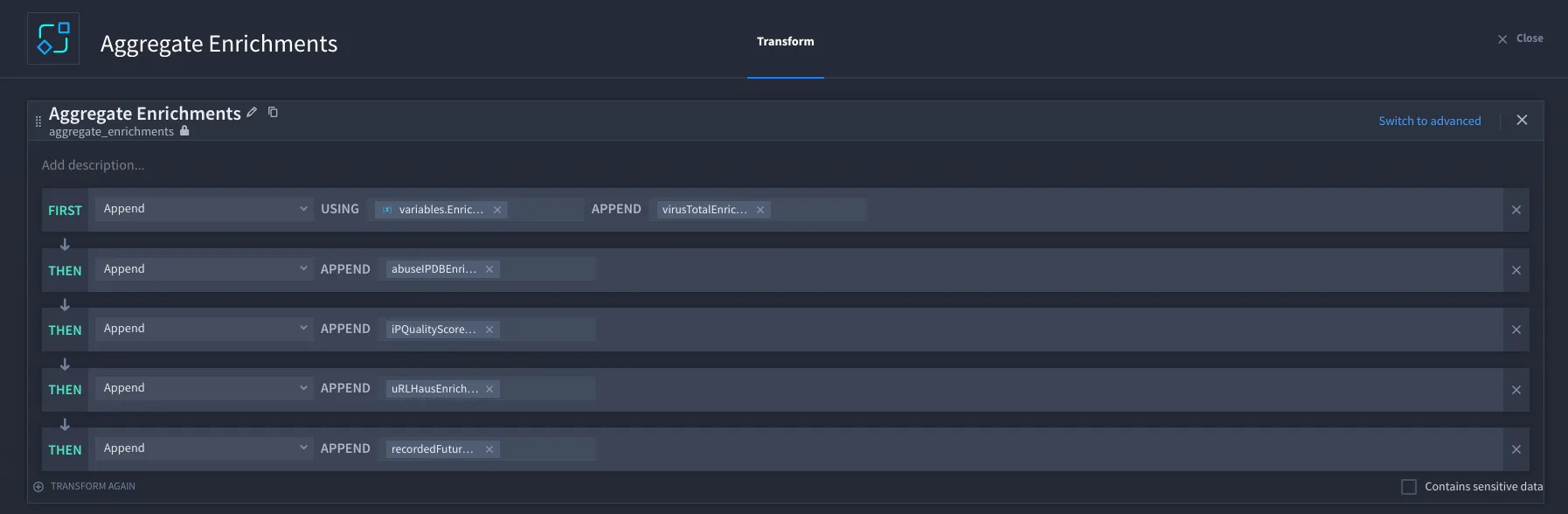

Step 3: Configure Aggregate Enrichments Action

After removing or adding new enrichment sources, you must update the Aggregate Enrichments action to reflect your changes:

Locate the Aggregate Enrichments action in the component workflow (typically after the Parallel node).

Click Edit on the Aggregate Enrichments action.

Review the existing append actions:

Each enrichment source component should have its Enrichments property mapped to an append action

The append actions combine enrichment results from all sources into a single aggregated result

For each enrichment source you added:

Add a new append action

Map the enrichment source component's Enrichments output property to the append action

Ensure the target is the aggregated enrichments object (not $DELETED)

For each enrichment source you removed:

Remove any append actions whose target is $DELETED

Remove append actions that reference deleted enrichment sources

Important: Any append action whose target is $DELETED must be removed to prevent errors

Example Aggregate Enrichments Configuration:

If you have three enrichment sources (VirusTotal, Recorded Future, URLHaus), your Aggregate Enrichments action should have three append actions:

Append VirusTotal enrichments → aggregated enrichments

Append Recorded Future enrichments → aggregated enrichments

Append URLHaus enrichments → aggregated enrichments

Step 4: Configure Enrichment Assets

Ensure that your enrichment provider assets are properly configured:

Navigate to Orchestration → Assets.

For each enrichment provider you're using:

Locate or create the asset for that provider

Configure authentication credentials (API keys, tokens, etc.)

Set up any required connection parameters

Test the asset connection to ensure it's working correctly

Verify that the asset names match what's configured in your enrichment source components

Common Enrichment Providers:

VirusTotal

Recorded Future

URLHaus

AbuseIPDB

Shodan

And others based on your subscription

Verification

After configuration, verify your setup:

Test the Component:

Run a test playbook execution with a sample observable

Verify that enrichments are being retrieved from all configured sources

Check that the Aggregate Enrichments action is combining results correctly

Check Output:

Verify that enrichment results appear in Threat Intelligence records

Confirm that enrichments are displayed in Case and Incident Management records

Ensure the Primary Intelligence Provider (PIP) is correctly identified

Monitor Performance:

Check execution times to ensure parallel enrichment is working efficiently

Monitor API rate limits if applicable

Review error logs for any failed enrichment requests

Troubleshooting

Issue: Enrichments Not Appearing

Possible Causes:

Enrichment assets are not properly configured

API credentials are invalid or expired

Enrichment source components are not receiving observable input

Solutions:

Verify asset configuration and test connections

Check API credentials and renew if necessary

Verify that inputs.observable is correctly mapped in enrichment source components

Issue: Aggregate Enrichments Errors

Possible Causes:

Append actions reference deleted enrichment sources

Append actions have $DELETED as target

Missing append actions for new enrichment sources

Solutions:

Remove any append actions with $DELETED targets

Add append actions for all active enrichment sources

Verify that each enrichment source's Enrichments output is mapped correctly

Issue: Performance Issues

Possible Causes:

Too many enrichment sources running in parallel

API rate limiting from enrichment providers

Network latency issues

Solutions:

Consider reducing the number of enrichment sources

Implement rate limiting or caching

Check network connectivity to enrichment providers

Best Practices

Selective Enrichment: Only use enrichment sources that provide value for your specific observable types

Asset Management: Keep enrichment provider assets up to date with valid credentials

Error Handling: Configure proper error handling for failed enrichment requests

Performance: Monitor and optimize the number of parallel enrichment sources

Cost Management: Be aware of API usage limits and costs for enrichment providers
