Urlscan.io Analysis

Introduction

This guide explains how to authenticate the urlscan.io Analysis connector in Swimlane using API Key Authentication. You will generate an API key in urlscan.io, collect the required credentials, and configure the connector asset in Swimlane Turbine.

Prerequisites

urlscan.io Access Requirements

You must have access to a urlscan.io account with permissions to generate API keys and submit scans.

Required Credentials

During setup you will collect:

urlscan.io API Base URL\

API Key

Authentication Method Overview

The urlscan.io Analysis connector supports the following authentication method:

API Key Authentication

urlscan.io API Setup

Take the following steps to generate an API key in urlscan.io:

Navigate to https://urlscan.io and log in to your account. If you do not have an account, create one.

Click your profile icon and navigate to Settings & API.

Locate the API Keys section.

Click Create New API Key.

Copy the generated API key.

Store the API key securely. This value will be used in the Swimlane connector configuration.

Connector Configuration in Swimlane

Take the following steps to configure the urlscan.io connector asset in Swimlane.

From the left-hand navigation pane, click ORCHESTRATION and click Assets.

The Asset homepage opens.

Click the plus icon to open the Configure your Connector Asset window.

Select urlscan.io Analysis from the Asset type list.

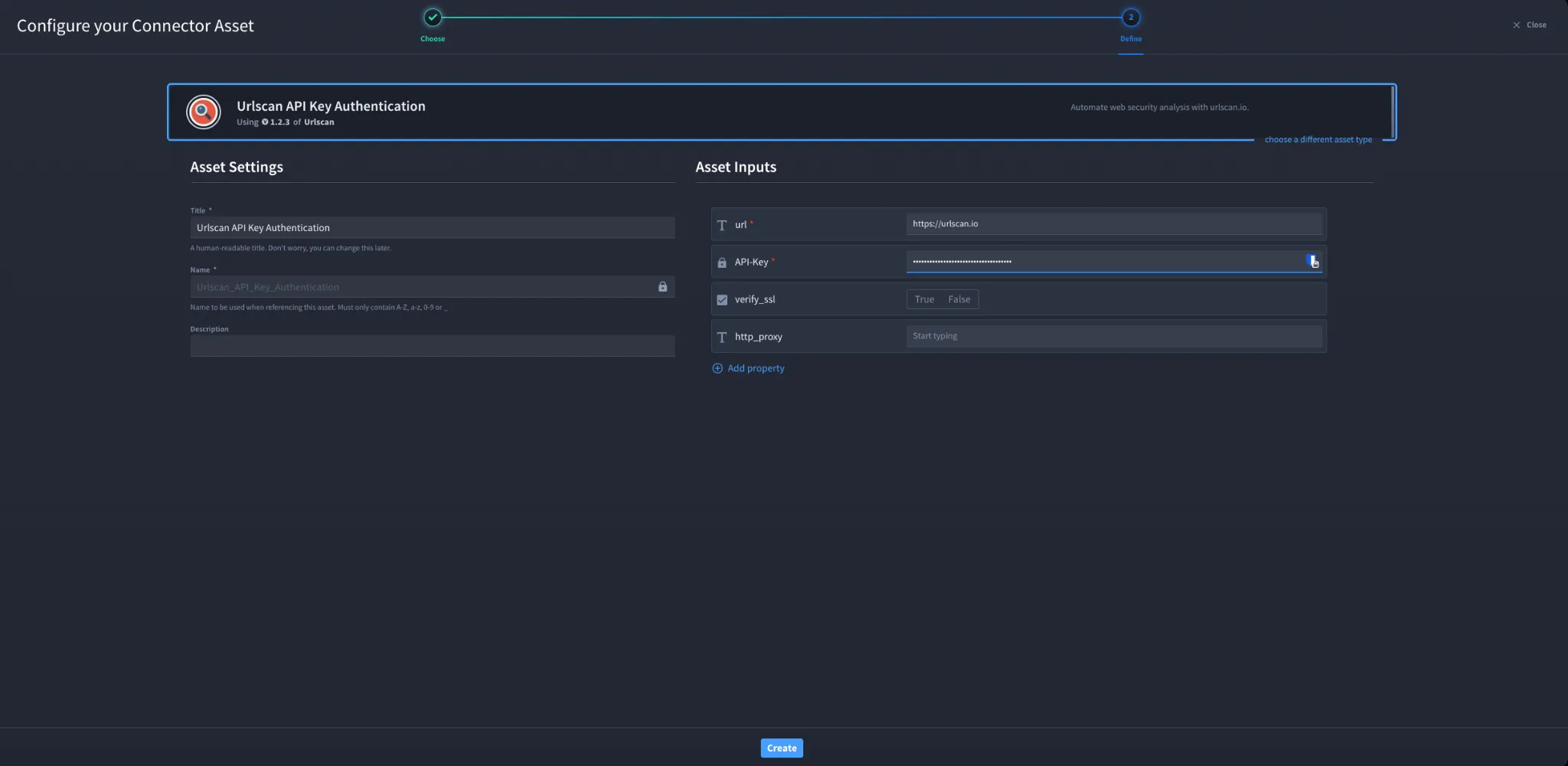

Fill in the Asset Settings and Asset Input as shown below.

Create Create.

Configuration Parameters

Field	Description	Required
url	Base URL for the urlscan.io API	Required
API-Key	API key generated in urlscan.io	Required
verify_ssl	Enable or disable SSL certificate verification	Optional
http_proxy	Proxy configuration	Optional

Troubleshooting

If authentication fails:

Ensure the API key is valid and correctly copied.

Verify the API base URL is correct.

Confirm the API-Key header is configured properly in the asset.

Check SSL verification settings if using internal certificates.

Validate proxy configuration if network traffic is routed through a proxy.

Sources

urlscan.io API Documentation: https://urlscan.io/docs/api/

Result

You have successfully authenticated the urlscan.io Analysis connector in Swimlane.
