IBM QRADAR

Introduction

This guide explains how to authenticate the IBM QRadar connector in Swimlane using API Key authentication. You will generate a QRadar SEC token, collect the required deployment URL, and configure the connector asset in Swimlane.

Prerequisites

QRadar Access Requirements

You must have QRadar administrator or equivalent permissions to:

Access the QRadar Admin console

Create Authorized Services for API access

Generate SEC tokens

View system deployment URL and API endpoint

Required Credentials

During setup you will collect:

QRadar Deployment URL

SEC Token (API Key)

Optional API Version

IBM QRadar API Setup

Take the following steps to generate a SEC API Token in QRadar:

From the top navigation bar, click Admin.

Navigate to User Management → Authorized Services.

Click Add Authorized Service.

Enter the following information:

Service Name (example: Swimlane_API_Access).

User Role with appropriate permissions for the API.

Expiry Date if required.

API Access level appropriate for your environment.

Click Create to generate the SEC token.

Copy and securely store the token. It will only be shown once.

Retrieve the QRadar API URL

Navigate to Admin.

Locate system information under System and License Management.

Identify the QRadar host or IP address.

Construct the API endpoint using the format: https://<QRadar-IP>/api/

Example API URL: https://192.168.1.100/api/

Optional: Test the QRadar API Token

You can validate the SEC token using a simple cURL command:

curl --location 'https://<QRadar-IP>/api/siem/offenses' --header 'SEC: <your_token>' --header 'Range: items=0-0'

If the request returns offense data, the API token is working correctly.

Connector Configuration in Swimlane

From the left navigation pane click ORCHESTRATION and select Assets.

Click the Plus (+) icon to create a new asset.

Select IBM QRadar from the Asset Type list.

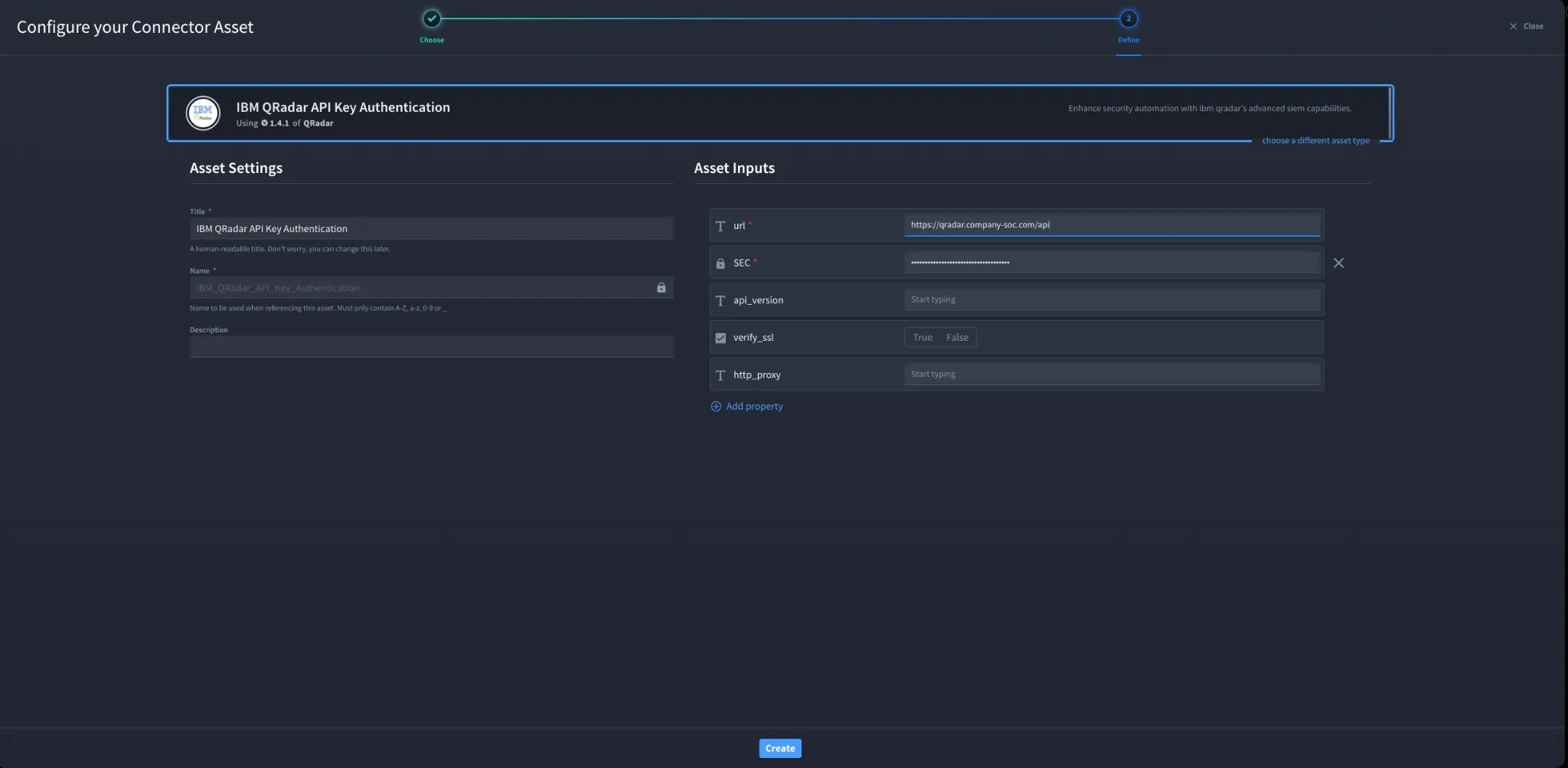

Fill in the Asset Settings and Asset Input fields as shown below.

Field	Description	Required
url	Base URL of the QRadar API endpoint (example: https://<QRadar-IP>/api/)	Required
SEC	QRadar SEC token used for API authentication	Required
api_version	Specify QRadar API version if required. Default uses latest version	Optional
verify_ssl	Enable or disable SSL certificate verification	Optional
http_proxy	Proxy configuration if API requests must pass through a proxy	Optional

Troubleshooting

Ensure the SEC token was copied correctly when the Authorized Service was created.

Verify the QRadar API URL uses the correct host or IP address followed by /api/.

Confirm the user role assigned to the Authorized Service has sufficient permissions.

If API requests fail with authentication errors, regenerate the SEC token and update the Swimlane asset.

If SSL errors occur, verify SSL settings or disable SSL verification if appropriate for your environment.

If QRadar is behind a proxy, configure the http_proxy field in the Swimlane asset.

Result

You have successfully authenticated the IBM QRadar connector in Swimlane.

Sources

IBM QRadar API Documentation: https://www.ibm.com/docs/en/qradar-common

IBM QRadar Ariel Query Language Documentation: https://www.ibm.com/docs/en/qradar-common?topic=language-ariel-query

AirMDR QRadar Integration Guide: https://docs.airmdr.com/Integrations/QRadar
