Google Workplace

Introduction

This guide tells you how to authenticate the Google Workspace connector in Swimlane.

You will create a Google Cloud project, enable required APIs, configure a service account, optionally enable domain-wide delegation, and configure the connector in Swimlane.

This connector supports Google authentication using one of the following:

Service Account JSON credentials (Base64-encoded)

OAuth 2.0 Client ID, Client Secret, and Refresh Token

Prerequisites

Google Access Requirements

You must have permissions to:

Create and manage projects in Google Cloud Platform

Enable APIs in Google Cloud Console

Create service accounts and download JSON key files

Manage domain-wide delegation in Google Admin console (recommended)

Create OAuth 2.0 client credentials (optional)

Required Credentials

During setup, you will collect:

Service Account JSON key file (Base64-encoded) or OAuth 2.0 Client ID and Client Secret

Delegate account email address (recommended)

Customer ID or my_customer alias (optional)

OAuth scopes for domain-wide delegation (recommended)

Refresh token (if using OAuth 2.0 client credentials)

GCP Project Creation

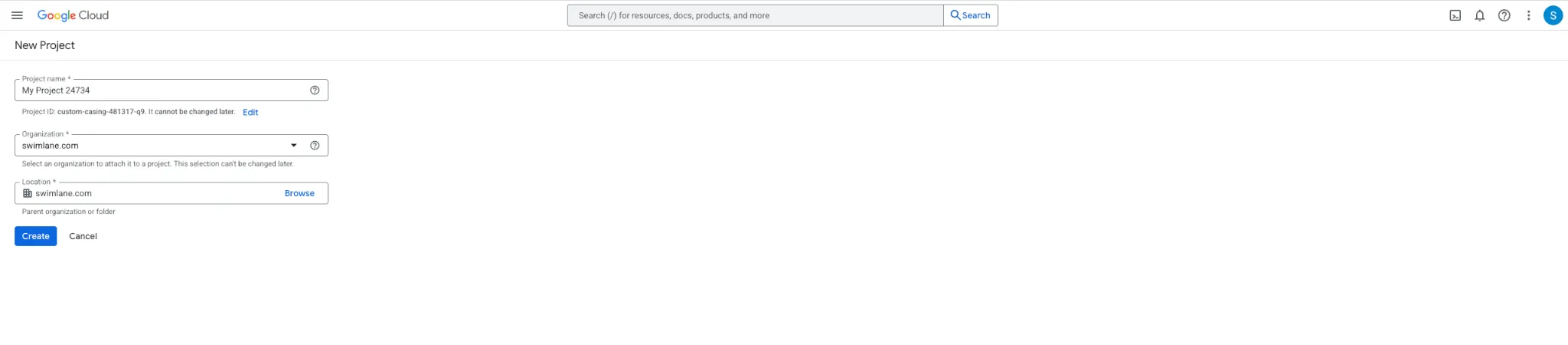

Take the following steps to create a Google Cloud project:

Navigate to https://console.cloud.google.com/projectcreate .

Name project and click Create.

Navigate to Projects and select new project.

Enabling Individual APIs

After creating project, enable required APIs for the connector.

Navigate to APIs & Services dashboard and enable following APIs using explicit names if links become deprecated:

API	URL
Google Drive	https://console.cloud.google.com/apis/library/drive.googleapis.com
Gmail	https://console.cloud.google.com/apis/library/gmail.googleapis.com
Google Workspace Alert Center	https://console.cloud.google.com/apis/library/alertcenter.googleapis.com
G Suite Vault	https://console.cloud.google.com/apis/library/vault.googleapis.com
Admin SDK API	https://console.cloud.google.com/apis/library/admin.googleapis.com
Google Chat API	https://console.cloud.google.com/apis/library/chat.googleapis.com
Google Sheets API	https://console.cloud.google.com/apis/library/sheets.googleapis.com

After enabling APIs, navigate back to APIs & Services dashboard and verify all APIs are listed.

If any APIs are missing, enable again.

Configuring a Service Account

Google Workspace connector requires a Google service account to authenticate.

Take the following steps to create a service account and download JSON key file:

Open https://console.developers.google.com/iam-admin/serviceaccounts.

Select the appropriate project.

Click CREATE SERVICE ACCOUNT.

Assign name and description, then click CREATE AND CONTINUE.

Select role Owner, then click CONTINUE.

Skip Grant users access to this service account or add users, then click DONE.

Click newly created service account email.

Navigate to KEYS.

Click ADD KEY and select CREATE NEW KEY.

Select JSON and click CREATE.

Download JSON file. This file is required for Swimlane asset creation.

Navigate to DETAILS and copy Unique ID. This value is required for domain-wide delegation.

Delegating Domain-Wide Authority (Recommended)

In order to support accessing multiple user's accounts, domain-wide authority must be enabled before creating a service account.

Choosing not to delegate domain-wide authority will heavily limit the scope of what this connector can do.

If the connector will only operate against a single account, the Setting API Scopes section can be skipped.

Setting API Scopes

After creating service account, authorize required API scopes using Google Admin console:

From https://admin.google.com, navigate to Security > API controls.

Click Manage Domain Wide Delegation.

Click Add new.

In Client ID field, enter Unique ID from service account Details menu.

Enter following CSV value into OAuth Scopes (comma-delimited) input:

https://mail.google.com/,https://www.googleapis.com/auth/admin.directory.device.mobile,https://www.googleapis.com/auth/admin.directory.device.mobile.action,https://www.googleapis.com/auth/admin.directory.group,https://www.googleapis.com/auth/admin.directory.group.member,https://www.googleapis.com/auth/admin.directory.orgunit,https://www.googleapis.com/auth/admin.directory.user,https://www.googleapis.com/auth/admin.directory.user.security,https://www.googleapis.com/auth/admin.directory.user.alias,https://www.googleapis.com/auth/admin.directory.userschema,https://www.googleapis.com/auth/apps.alerts,https://www.googleapis.com/auth/devstorage.read_only,https://www.googleapis.com/auth/drive,https://www.googleapis.com/auth/ediscovery,https://www.googleapis.com/auth/chat.bot,https://www.googleapis.com/auth/spreadsheets

Click Authorize.

OAuth 2.0 (Optional)

To configure OAuth 2.0 for Google Workspace connector, follow these steps:

Navigate to Google Cloud Console.

Select project.

In left sidebar, select APIs & Services > Credentials.

Click CREATE CREDENTIALS and select OAuth client ID.

Select application type as Web application.

Enter name and click Create.

Copy client ID and client secret.

Add necessary scopes under Scopes for Google APIs.

Click Save.

Retrieve Refresh Token

To retrieve refresh_token, reach out to Swimlane support for requirements.txt and get_refresh_token.py files.

Python3 must be installed on local system.

Run the following commands:

python3 -m pip install -r requiremments.txt

python3 get_refresh_token.py

Script will:

Prompt for client_id and client_secret

Prompt for additional scopes. By default requested scopes are gmail.send and gmail.modify

Direct user to Gmail authentication and approval in browser.

Redirect the user to a blank page at https://localhost.

Copy full URL for https://localhost address and provide it to script to receive refresh token.

Swimlane Asset Setup

Credentials

Contents of JSON credentials key file downloaded when creating service account must be base64-encoded when creating Swimlane Google Workspace asset. Copy Base64 encoded string and paste into Service Account JSON field.

For Linux and Mac:

$ cat <path_to_credentials.json> | base64

For Windows using Powershell:

[convert]::ToBase64String((Get-Content -path your_file_path -Encoding byte))

Delegate Account

Delegate account value determines which account to operate as when running actions.

Delegate account value should be the email address for the target account.

In most cases an Admin account of Google Workspace should be used.

Do not use service account email.

Customer ID

Customer ID is unique ID for customer's Google Workspace account.

As account administrator, my_customer alias can be used to represent customerId.

To find Customer ID, navigate to https://admin.google.com and go to Account > Account settings.

Limitations when NOT using a Delegated Account

Using a service account without delegate_account introduces limitations when interacting with user data.

Service accounts may not be able to access user emails, contacts, or Google Drive files in the same way a regular user can.

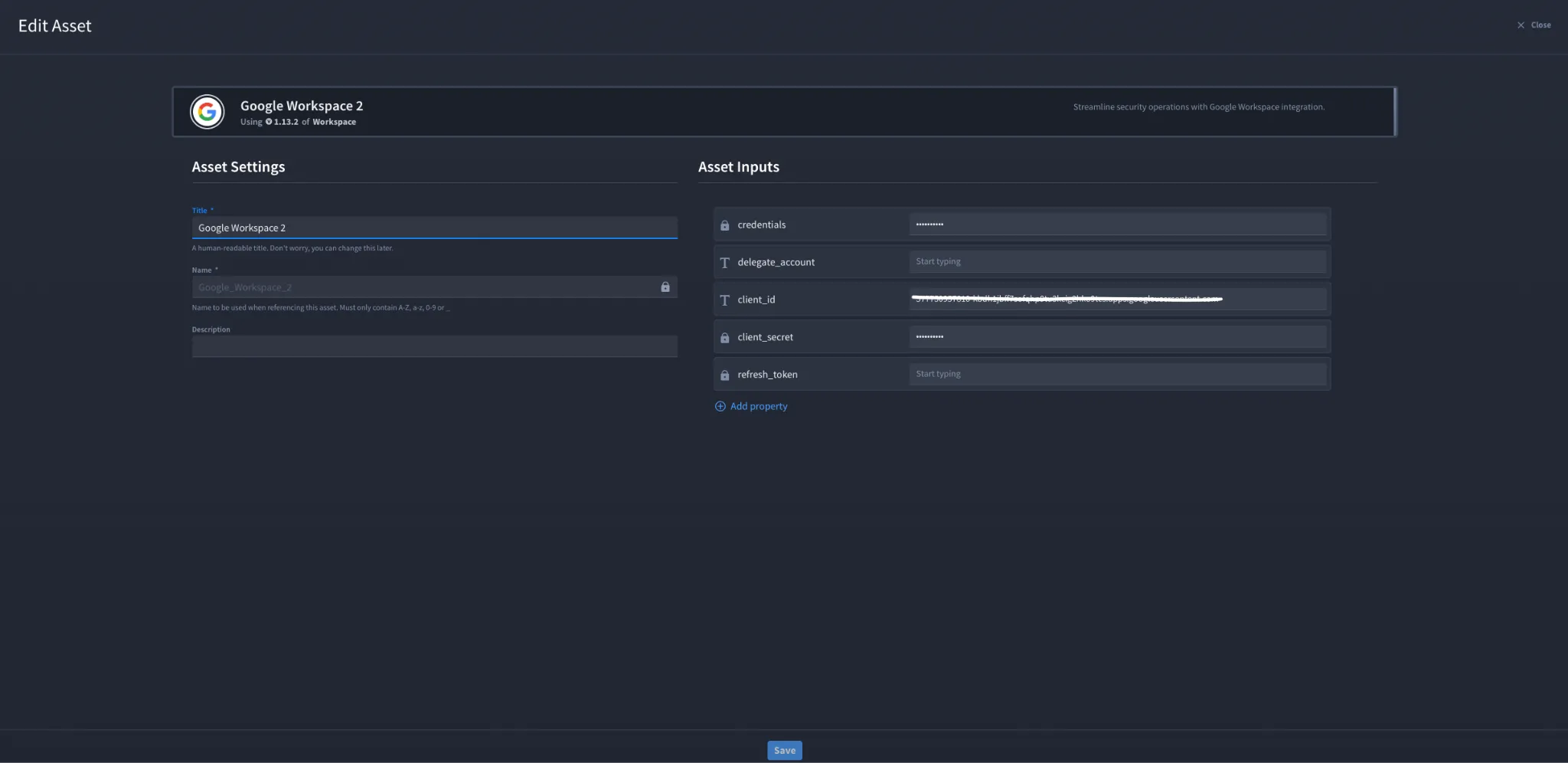

Connector configuration in Swimlane

From the left-hand navigation pane, click ORCHESTRATION and click Assets. Asset homepage opens.

Click plus icon to open Configure your Connector Asset window.

Select Google Workspace from Asset type list.

Fill in Asset Settings and Asset Input as shown:

Field	Description	Required/Optional
credentials	Base64-encoded contents from Service Account JSON credentials file.	Optional
delegate_account	Account to execute integrations under. If not specified, integration will run as service account.	Optional
client_id	The client ID for the OAuth 2.0 application.	Optional
client_secret	The client secret for the OAuth 2.0 application.	Optional
refresh_token	OAuth 2.0 refresh token used to obtain new access tokens. If using refresh token, provide client_id and client_secret.	Optional

Fields with * marks are required.

While adding an asset, provide either credentials or Client ID and Client Secret. If both are provided, Client ID takes precedence.

Click Create.

Troubleshooting

If you encounter an authentication error:

Verify required APIs are enabled in Google Cloud project.

Verify service account JSON key is valid and Base64 encoding includes full file contents.

Verify domain-wide delegation is configured with correct Unique ID and required scopes.

Verify delegate_account is a valid admin user email address and not a service account email.If using refresh_token flow, verify client_id, client_secret, and refresh_token match the same OAuth client.

You have successfully authenticated the Google Workspace Connector in Swimlane.
