Google Chronicle Search

Introduction

This guide tells you how to authenticate the Google Chronicle Search connector in Swimlane using OAuth 2.0 Service Account Authentication.

You will create a Google Cloud service account, assign the required permissions, generate a JSON key file, collect the required identifiers, and configure the connector in Swimlane.

Prerequisites

Google Chronicle Access Requirements

You must have Google Cloud permissions to:

Access the Google Chronicle platform

Create and manage Service Accounts

Generate Service Account JSON keys

Assign Chronicle API permissions

Access Google Security Operations APIs

Required Credentials

During setup, you will collect:

Google Chronicle API Base URL

Service Account JSON Key File

OAuth Scopes

Authentication Methods Overview

The Google Chronicle Search connector supports:

OAuth 2.0 Service Account Authentication

Google Chronicle Setup

Take the following steps to create a Service Account:

Navigate to IAM & Admin → Service Accounts.

Click Create Service Account.

Enter:

Service Account Name

Description

Click Create and Continue.

Assign appropriate Chronicle or Security Operations roles.

Click Done.

Take the following steps to generate a JSON Key File:

Open the created Service Account.

Navigate to the Keys tab.

Click Add Key → Create New Key.

Select JSON.

Click Create.

Download and securely store the JSON key file.

Take the following steps to Base64 encode the JSON Key File:

The Swimlane connector requires the Service Account JSON contents to be Base64 encoded.

Linux / macOS

base64 service-account.json

Windows PowerShell

[Convert]::ToBase64String([IO.File]::ReadAllBytes("service-account.json"))

Copy the generated Base64 string for use in Swimlane.

Regional Endpoints

Region	Endpoint
United States Multi-Region	https://backstory.googleapis.com/
European Multi-Region	https://europe-backstory.googleapis.com/
London	https://europe-west2-backstory.googleapis.com/
Singapore	https://asia-southeast1-backstory.googleapis.com/
Sydney	https://australia-southeast1-backstory.googleapis.com/
Tel Aviv	https://me-west1-backstory.googleapis.com/

Connector configuration in Swimlane

From the left-hand navigation pane, click ORCHESTRATION and click Assets.

Asset homepage opens.

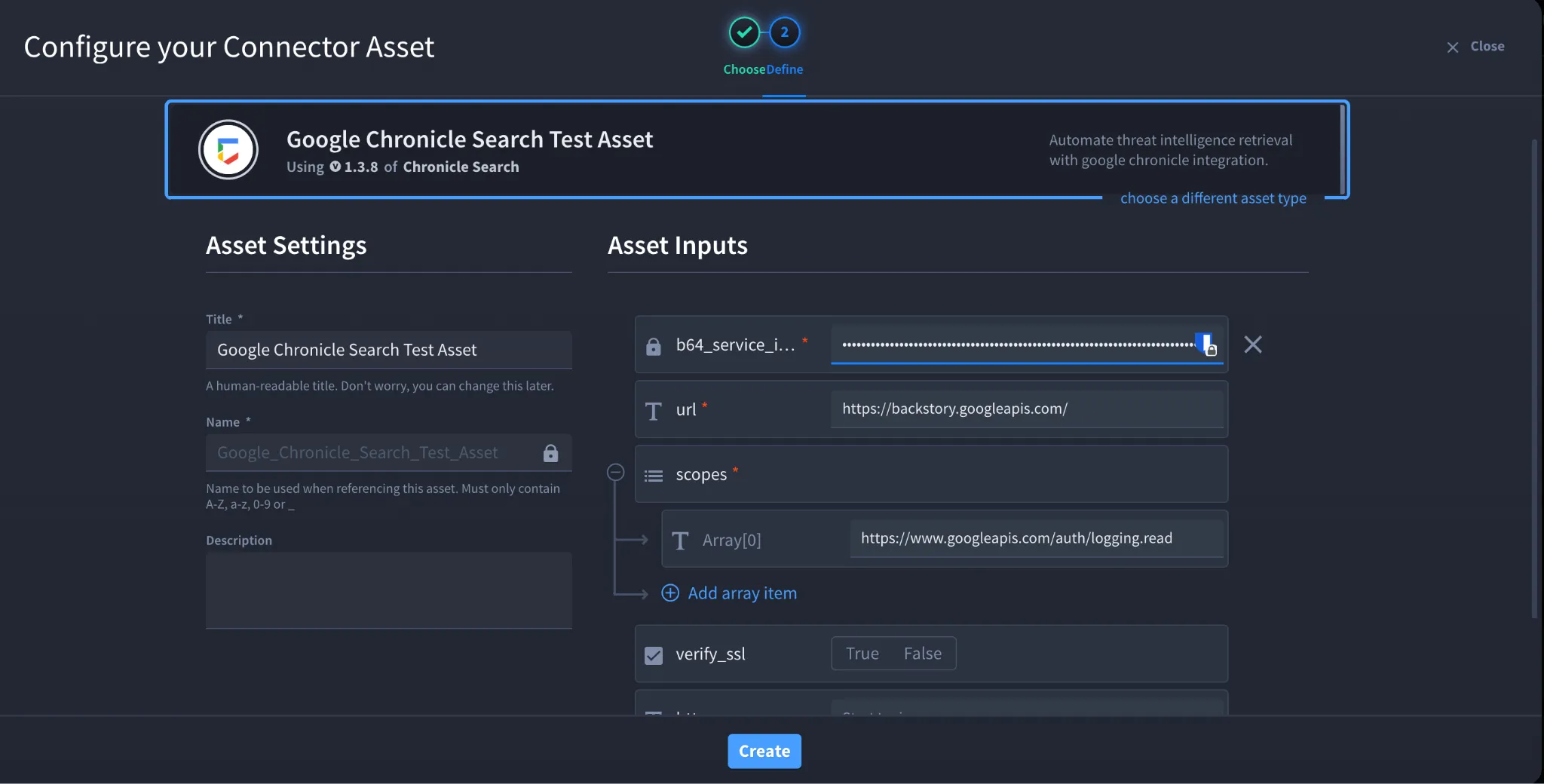

Click the plus icon to open the Configure your Connector Asset window.

Select Google Chronicle Search from the Asset type list.

Fill in the Asset Settings and Asset Input as shown:

Configuration – OAuth 2.0 Service Account Authentication

Field	Description	Required
b64_service_info	Base64-encoded Service Account JSON contents	Yes
url	Google Chronicle regional API endpoint	Yes
scopes	OAuth scopes required for Chronicle APIs	Yes
verify_ssl	Enable or disable SSL verification	No
http_proxy	Proxy configuration	No

Recommended OAuth Scopes

Scope	Purpose
https://www.googleapis.com/auth/cloud-platform	Access Google Cloud APIs
https://www.googleapis.com/auth/chronicle-backstory	Access Chronicle APIs

Troubleshooting

Authentication failures may occur due to:

Incorrect Base64 encoding

Invalid Service Account JSON file

Missing Chronicle API permissions

Incorrect regional endpoint

Invalid OAuth scopes

Fix:

Ensure the JSON file is correctly Base64 encoded

Verify Service Account permissions

Confirm the correct Chronicle regional endpoint

Verify assigned OAuth scopes

Regenerate Service Account keys if necessary

You have successfully authenticated the Google Chronicle Search connector in Swimlane.

Sources

Google Chronicle API Documentation: https://cloud.google.com/chronicle/docs/reference

Google Chronicle Search API Documentation: https://cloud.google.com/chronicle/docs/reference/search-api

Google Cloud Service Accounts Documentation: https://cloud.google.com/iam/docs/service-accounts

Google Cloud Service Account Keys Documentation: https://cloud.google.com/iam/docs/keys-create-delete
