Introduction

This guide tells you how to authenticate the Cybersixgill connector in Swimlane using OAuth 2.0 Client Credentials. You will generate API credentials in the Cybersixgill platform, collect the required identifiers, and configure the connector asset in Swimlane Turbine.

Prerequisites

Cybersixgill Access Requirements

You must have administrative access in the Cybersixgill platform to:

Create or manage API applications

Generate OAuth 2.0 Client Credentials

Access actionable alerts and intelligence data

Required Credentials

During setup, you will collect:

API Base URL

Client ID

Client Secret

Authentication Method Overview

The Cybersixgill connector supports the following authentication method:

OAuth 2.0 Client Credentials

Cybersixgill Setup

Take the following steps to generate OAuth credentials in Cybersixgill:

Navigate to the API or Developer Settings section.

Create a new API application or integration.

Select OAuth 2.0 Client Credentials as the authentication method.

Copy the generated Client ID.

Copy the generated Client Secret and securely store it.

Connector Configuration in Swimlane

Take the following steps to configure the Cybersixgill connector asset in Swimlane:

From the left-hand navigation pane, click ORCHESTRATION and click Assets. The Asset homepage opens.

Click the plus icon to open the Configure your Connector Asset window.

Select Cybersixgill from the Asset type list.

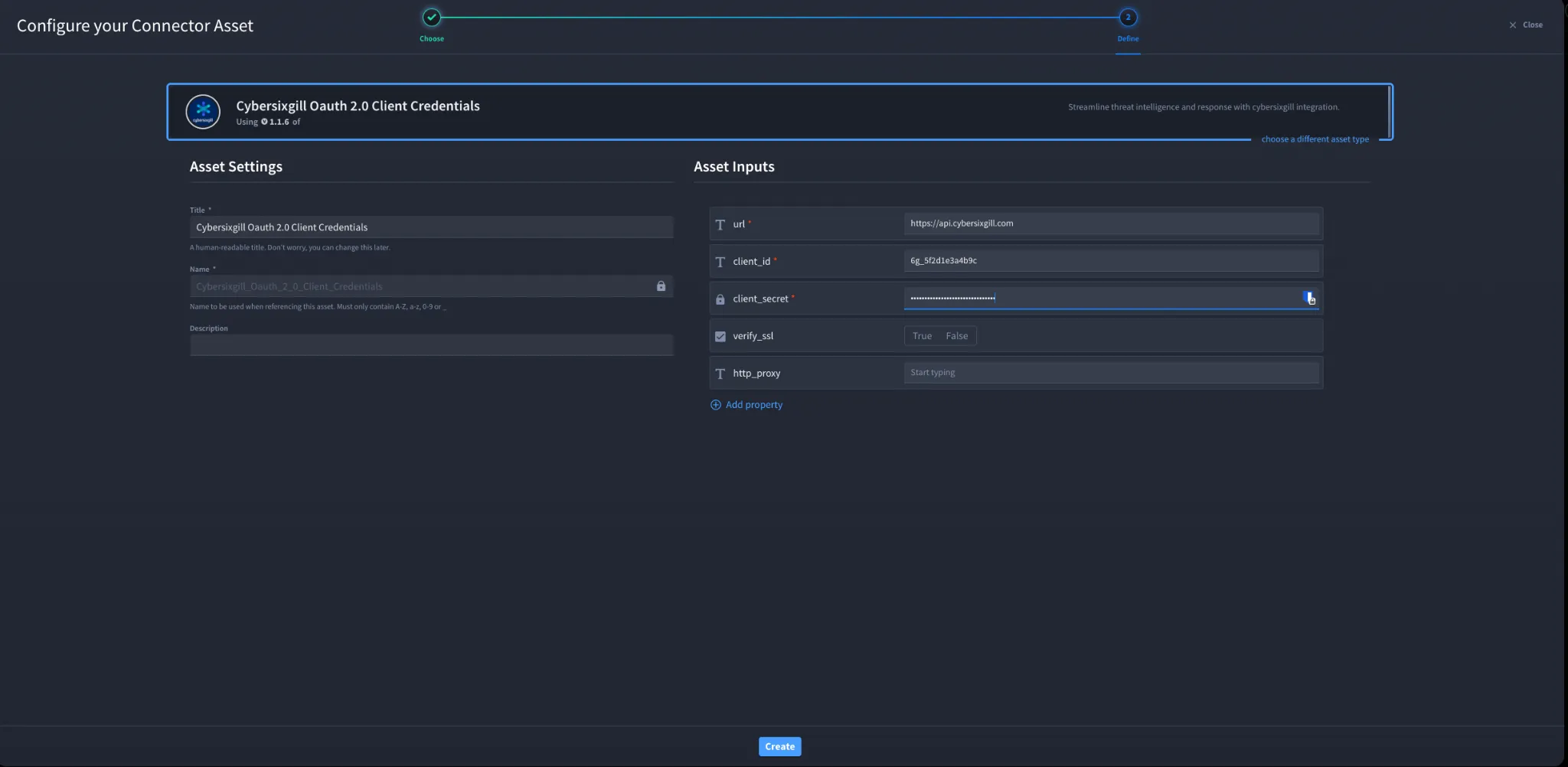

Fill in the Asset Settings and Asset Input as shown below.

Click Create.

Configuration Parameters

Field	Description	Required
url	Cybersixgill API endpoint URL	Required
client_id	OAuth 2.0 Client ID	Required
client_secret	OAuth 2.0 Client Secret	Required
verify_ssl	Enable or disable SSL certificate verification	Optional
http_proxy	Proxy configuration	Optional

Troubleshooting

If authentication fails, check the following:

Ensure the Client ID and Client Secret are copied correctly.

Verify the API Base URL matches your Cybersixgill environment.

Confirm the OAuth application is active.

Check SSL verification settings if using internal certificates.

Validate proxy configuration if routing traffic through a proxy.

Sources

Cybersixgill API Documentation: https://docs.cybersixgill.com/

Result

You have successfully authenticated the Cybersixgill connector in Swimlane using OAuth 2.0 Client Credentials.
