Cyfirma V2

Introduction

This guide tells you how to authenticate the CYFIRMA V2 connector in Swimlane using API Key Authentication. You will generate an API key in the CYFIRMA platform, collect the required values, and configure the connector asset in Swimlane Turbine.

Prerequisites

CYFIRMA Access Requirements

You must have administrative access in the CYFIRMA platform to:

Generate or manage API keys

Access threat intelligence modules (Alerts, IOCs, Digital Risk, Data Breach, etc.)

Required Credentials

During setup, you will collect:

CYFIRMA API Base URL

API Key

Authentication Method Overview

The CYFIRMA V2 connector supports the following authentication method: API Key Authentication

CYFIRMA API Setup

Take the following steps to generate an API Key in CYFIRMA:

Navigate to the Account Settings or API Management section.

Create or generate a new API key for integration.

Copy the generated API key.

Store the API key securely. This value will be required in Swimlane.

Connector Configuration in Swimlane

Take the following steps to configure the CYFIRMA V2 connector asset in Swimlane:

From the left-hand navigation pane, click ORCHESTRATION and click Assets.

The Asset homepage opens.

Click the plus icon to open the Configure your Connector Asset window.

Select CYFIRMA V2 from the Asset type list.

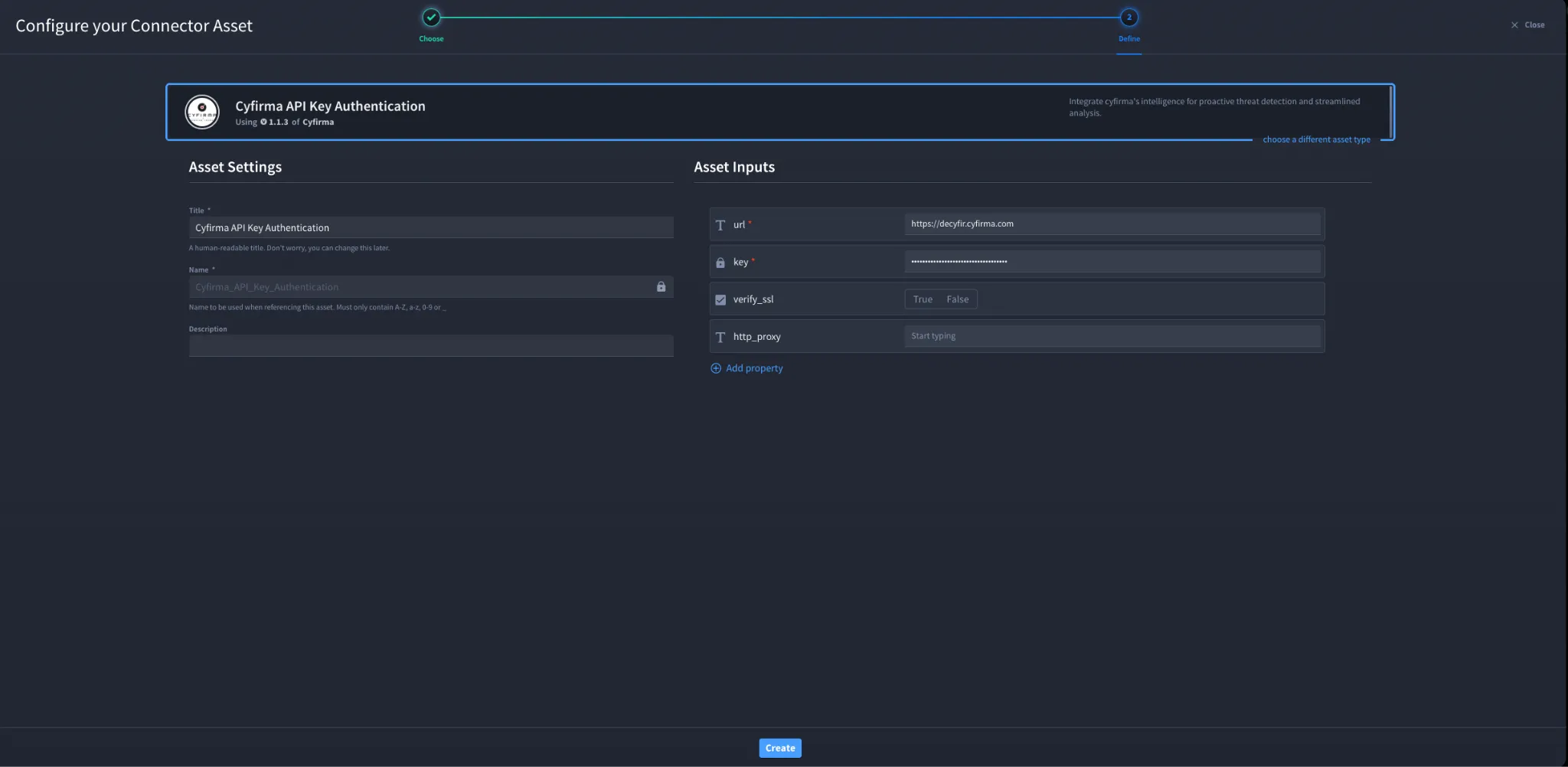

Fill in the Asset Settings and Asset Input as shown below.

Configuration Parameters

Field	Description	Required
url	CYFIRMA API endpoint URL	Required
key	API key for authentication	Required
verify_ssl	Enable or disable SSL certificate verification	Optional
http_proxy	Proxy configuration	Optional

Troubleshooting

If authentication fails, check the following:

Ensure the API key is valid and active.

Verify the API Base URL matches your CYFIRMA environment.

Confirm the API key has sufficient access to required modules.

Check SSL verification settings if using internal certificates.

Validate proxy configuration if routing traffic through a proxy

Sources

CYFIRMA API Documentation: https://www.cyfirma.com/

Result

You have successfully authenticated the CYFIRMA V2 connector in Swimlane using API Key Authentication.
