Crowdstrike Falcon

Introduction

This guide explains how to authenticate the CrowdStrike Falcon connector in Swimlane using OAuth 2.0 Client Credentials.

You will identify your cloud base URL, gather CrowdStrike OAuth credentials, and configure the connector inside Swimlane Turbine.

Crowdstrike Access Requirements

You must have Crowdstrike Console permissions to:

Create / View API Clients and Keys

Assign required OAuth scopes

Identify your Falcon cloud region

(If applicable) access your member CID for MSSP environments

Required Credentials

During setup, you will collect:

Client ID

Client Secret

Base URL (depends on your Falcon cloud)

Member CID (optional; only for MSSP)

CrowdStrike Cloud Base URLs

Use the base URL specific to your Falcon region:

Cloud	Base URL
US-1	https://api.crowdstrike.com
US-2	https://api.us-2.crowdstrike.com
EU-1	https://api.eu-1.crowdstrike.com
US-GOV-1	https://api.laggar.gcw.crowdstrike.com
US-GOV-2	https://api.us-gov-2.crowdstrike.mil

Ask your admin or check your CrowdStrike portal URL to confirm your region.

CrowdStrike Setup

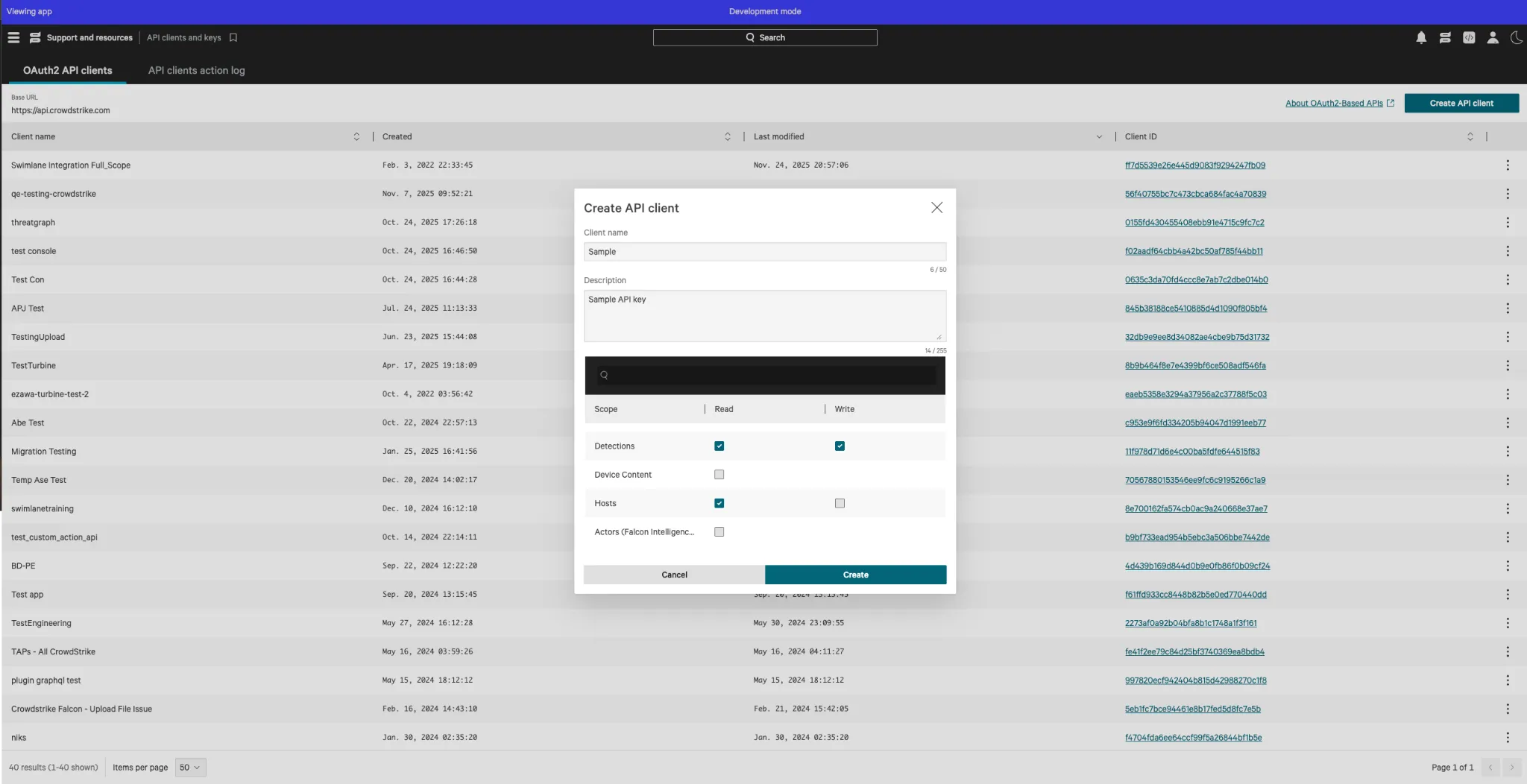

Take the following steps to Create API Client :

Log into CrowdStrike Falcon console.

Navigate to Support > API Clients and Keys.

Click Create API Client.

Enter a name and description.

Assign required OAuth scopes as per the following list: Core Falcon Permissions -

Detections: Read

Detections: Write

Hosts: Read

Incidents: Read

Incidents: Write

Real Time Response: Read

Real Time Response: Write

IOCs: Read

IOCs: Write

Sensor Download: Read

Spotlight Vulnerabilities: Read

Optional (based on actions) -

RTR Admin commands

Quarantine / Scan management

Sandbox file submission

Click Create and copy:

Client ID

Client Secret

These values will not be shown again. Store them securely.

Take the following steps to collect Member CID:

This is an optional step and is only required if your environment is MSSP (Managed Security Service Provider).

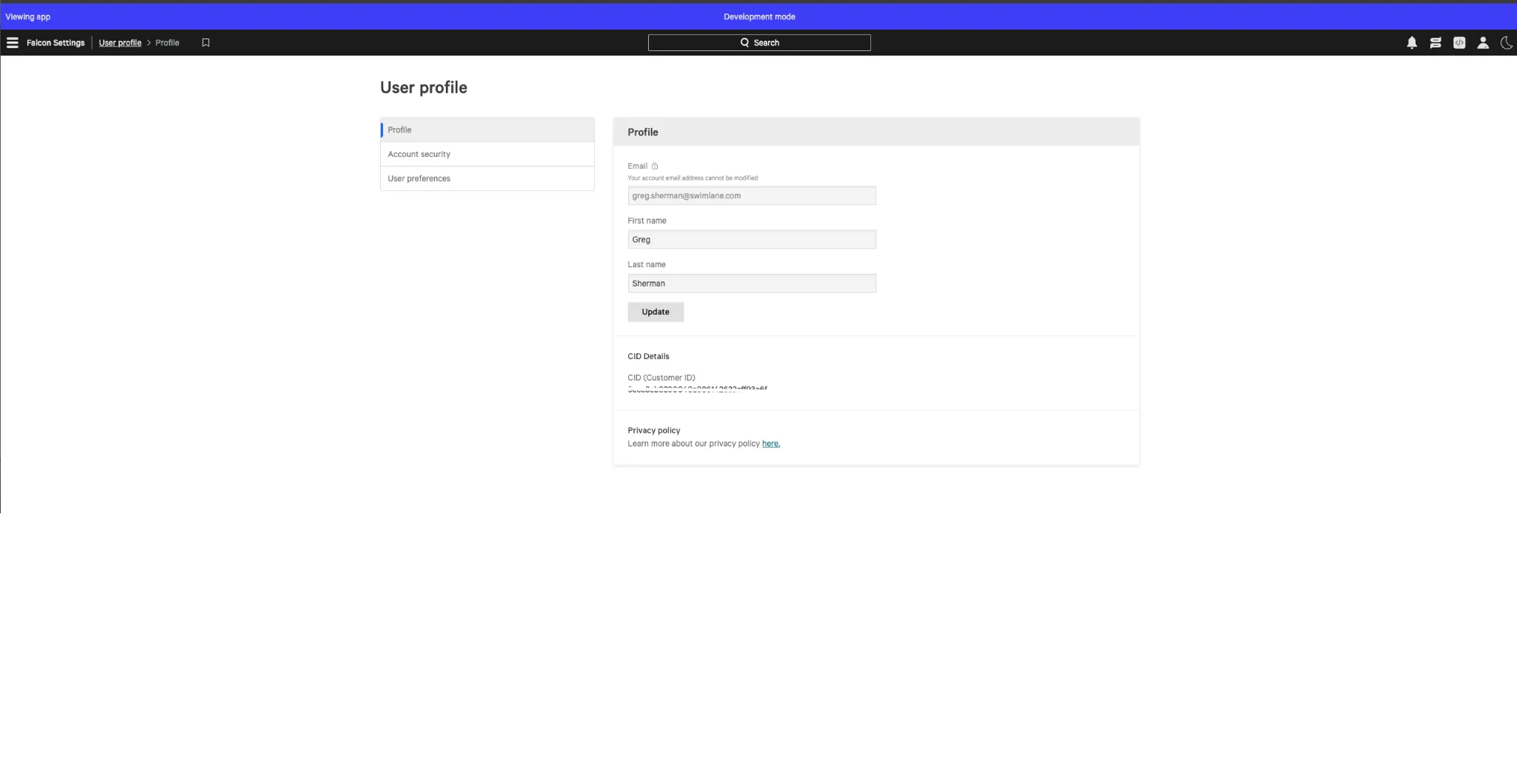

Go to User > My Profile in CrowdStrike.

Locate Customer ID (CID).

If multiple tenants exist, use the member CID assigned to your sub-org.

Connector configuration in Swimlane

From the left-hand navigation pane, click ORCHESTRATION and click Assets. Asset homepage opens.

Click the plus icon to open the Configure your Connector Asset window.

Select CrowdStrike Falcon from the Asset type list.

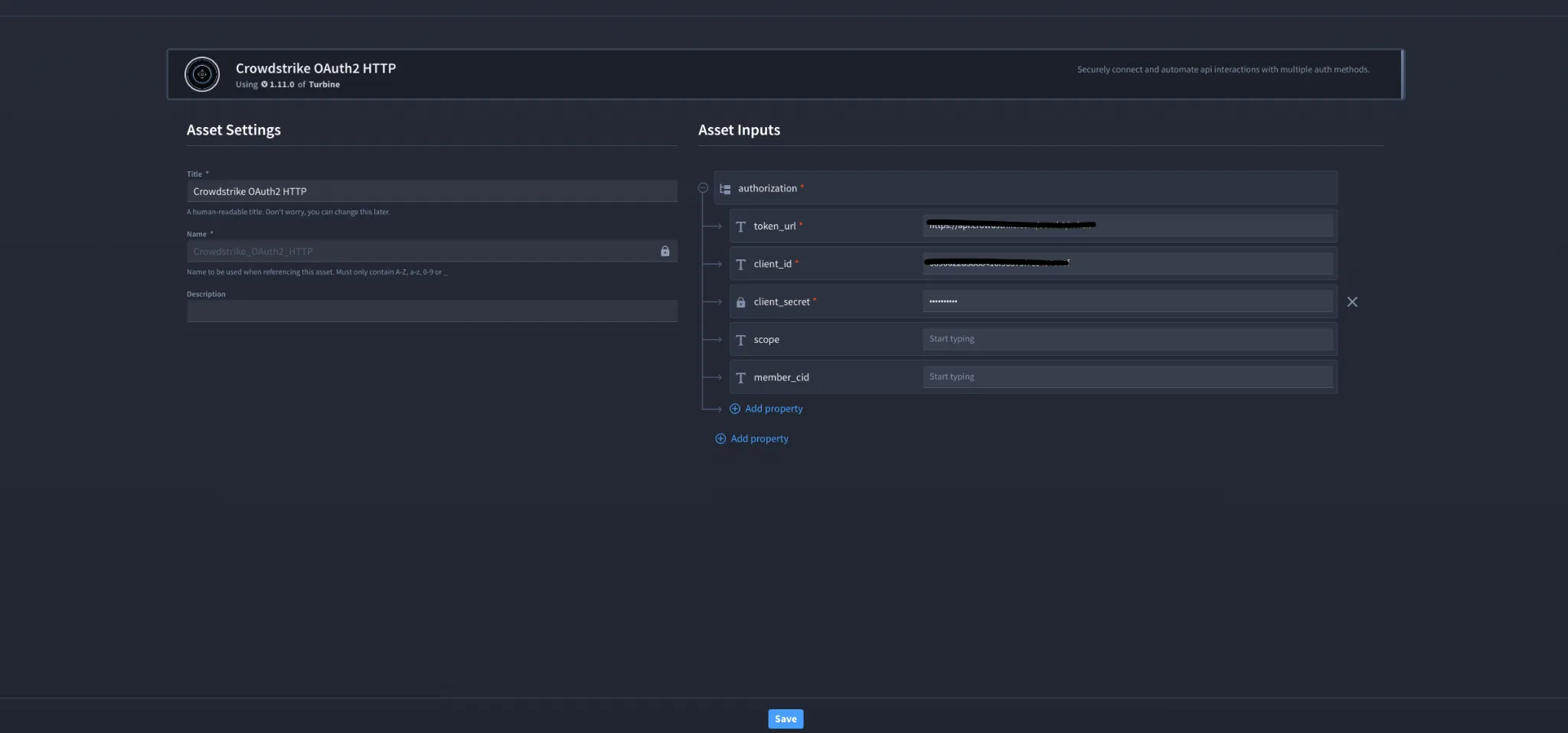

Fill in the Asset Settings and Asset Input as shown:

Field	Description	Required
url	Base URL for your Falcon cloud	Required
client_id	Client ID from CrowdStrike	Required
client_secret	Client Secret from CrowdStrike	Required
member_cid	Required only for MSSP	Optional
verify_ssl	Enable/Disable SSL validation	Optional
http_proxy	Proxy settings, if applicable	Optional

Fields with * marks are required.

Click Create.

Troubleshooting

Invalid Credentials Error

Ensure Client ID / Client Secret were copied correctly.

Confirm the API client still exists and wasn't regenerated.

403 Forbidden

Missing OAuth scopes.

Add required permissions and re-authenticate.

Wrong Region

Make sure your base URL matches your CrowdStrike cloud.

You have successfully authenticated the Crowdstrike Falcon Connector in Swimlane.
