Amazon AWS Lambda

Introduction

This guide tells you how to authenticate the Amazon AWS Lambda connector in Swimlane using AWS access keys and (optionally) an assumable IAM role. You will create or identify an IAM principal, generate credentials, assign the required permissions to invoke Lambda functions, collect required identifiers, and configure the connector asset in Swimlane.

Prerequisites

AWS Access Requirements

You must have AWS permissions to:

Create or manage IAM users (or another IAM principal) for programmatic access

Create and manage IAM roles (optional, if you will use role assumption)

Create and manage IAM policies/permissions for AWS Lambda

View the AWS region where your Lambda functions are deployed

Required Credentials

During setup, you will collect:

AWS Access Key ID

AWS Secret Access Key

AWS Region (region_name)

Role ARN (role_arn) – required by this connector

Required Permissions

At minimum, the IAM role used by the connector must be allowed to invoke the target Lambda function(s). If you use role assumption, the calling IAM principal must also be allowed to assume the role.

Minimum IAM permissions typically include:

lambda:InvokeFunction (on the specific function ARN(s) you will invoke)

sts:AssumeRole (only if you are using role assumption via role_arn)

AWS Setup

Take the following steps to create (or identify) an IAM user for programmatic access:

Open the IAM console.

In the left navigation pane, select Users.

Select an existing user (recommended) or create a new user for programmatic access.

Take the following steps to generate an access key for the IAM user:

From IAM, open the selected user.

Open the Security credentials tab.

Under Access keys, click Create access key.

Select the appropriate use case (for example, Command Line Interface (CLI) or Application running outside AWS).

Click Next, optionally add a description tag, then click Create access key.

Copy and securely store the Access key and Secret access key. You will not be able to view the secret access key again after you close this window.

Take the following steps to create an IAM role for the connector to assume (role_arn):

In the IAM console, select Roles, then click Create role.

For Trusted entity type, select AWS account (or the appropriate trusted entity for your environment).

In the trust policy, allow the IAM principal used by Swimlane (for example, your IAM user or your AWS account) to assume the role using sts:AssumeRole.

Attach (or create and attach) a permissions policy that allows lambda:InvokeFunction for the required Lambda function ARN(s).

Name the role and create it.

Open the newly created role and copy the Role ARN. This value will be used as role_arn in Swimlane.

Connector Configuration in Swimlane

Take the following steps to configure the Amazon AWS Lambda connector asset in Swimlane:

From the left-hand navigation pane, click ORCHESTRATION and click Assets.

Click the plus icon to open the Configure your Connector Asset window.

Select Amazon AWS Lambda from the Asset type list.

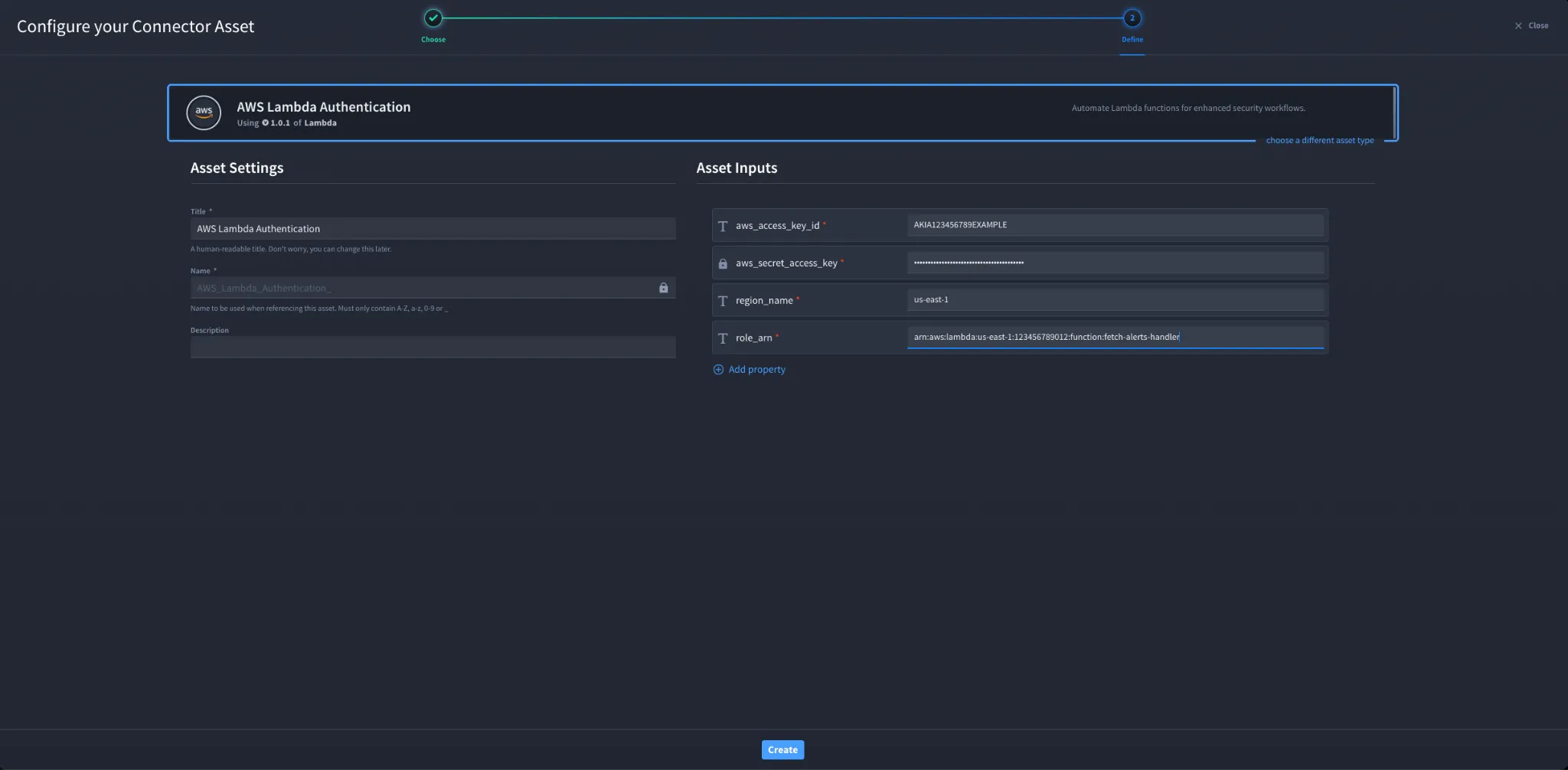

Fill in the Asset Settings and Asset Input as shown:

Field	Description	Required/Optional
aws_access_key_id	AWS access key ID for the IAM principal used for authentication.	Required
aws_secret_access_key	AWS secret access key paired with the access key ID.	Required
region_name	AWS region where the target Lambda function is deployed (for example, us-east-1).	Required
role_arn	IAM Role ARN that the connector will assume to invoke Lambda functions.	Required
verify_ssl	Enable/Disable SSL verification.	Optional
http_proxy	Optional proxy configuration.	Optional

Fields with * marks are required.

Click Create.

Troubleshooting

If authentication fails or actions return authorization errors:

Verify the Access Key ID and Secret Access Key are correct and active for the IAM user.

Confirm region_name matches the region where the Lambda function exists.

If using role_arn, confirm the role ARN is correct and the role trust policy allows the calling IAM principal to assume it (sts:AssumeRole).

Confirm the assumed role has lambda:InvokeFunction permission for the target function ARN(s).

If you receive AccessDeniedException when invoking a function, check the Lambda function resource policy (if used) and the role policy for the exact function ARN and qualifier (versions/aliases).

If requests fail behind a corporate proxy, configure http_proxy and confirm proxy allows outbound connectivity to AWS endpoints.

Result: You have successfully authenticated the Amazon AWS Lambda connector in Swimlane.
