Trend Micro Vision One
Introduction
This guide explains how to authenticate the Trend Micro Vision One connector in Swimlane using HTTP Bearer Token Authentication.
You will generate an API token in Trend Micro Vision One, identify the correct regional host URL, and configure the connector in Swimlane.
Prerequisites
Trend Micro Vision One Access Requirements
You must have permissions to:
- Access the Trend Micro Vision One console
- Generate and manage API tokens
- Access Vision One APIs
- View regional domain information
Required Credentials
During setup, you will collect:
- API Host URL
- API Token
Trend Micro Vision One Setup
Take the following steps to generate an API Token:
- Log in to the Trend Micro Vision One console.
- Navigate to Administration > API Keys or Automation & APIs depending on your tenant version.
- Click Add API Key or Generate API Token.
- Enter a name and description for the API token.
- Assign the required permissions for API access.
- Click Generate.
- Copy and securely save the generated API token.
Take the following steps to identify your regional host URL:
- Log in to your Trend Micro Vision One portal.
- Review the browser URL or regional domain documentation.
- Copy the appropriate regional API host URL.
Examples:
Region | Example Host URL |
|---|---|
United States | |
Europe | |
Asia Pacific |
Connector configuration in Swimlane
- Log in to Turbine.
- From the left-hand navigation pane, click ORCHESTRATION and click Assets.
- Asset homepage opens.

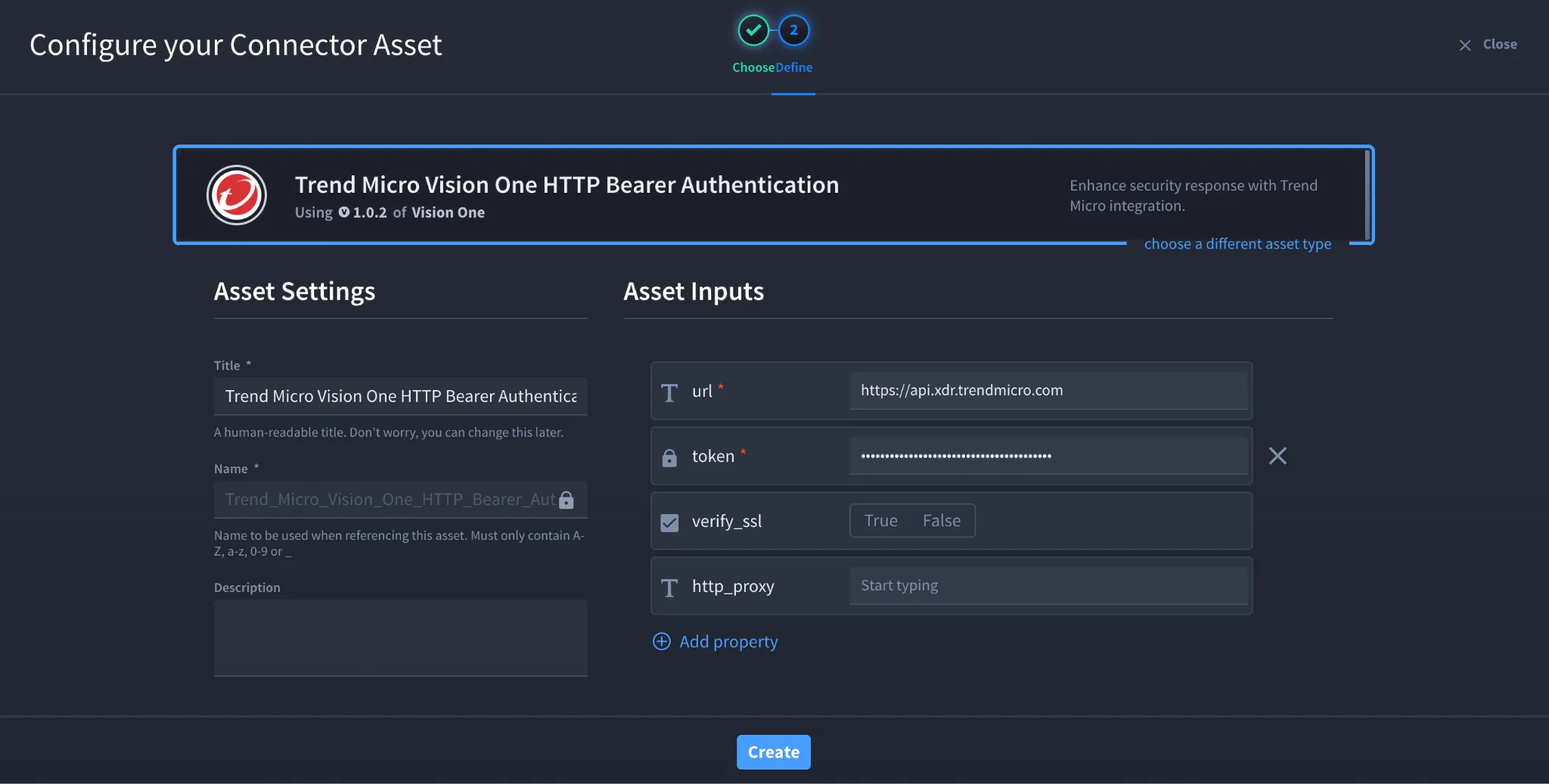

- Click the plus icon to open the Configure your Connector Asset window.
- Select Trend Micro Vision One from the Asset type list.
- Fill in the Asset Settings and Asset Input as shown:
Configuration β HTTP Bearer Authentication
Field | Description | Required |
|---|---|---|
url | Trend Micro Vision One regional API URL | Yes |
token | API token generated from Vision One | Yes |
verify_ssl | Enable or disable SSL verification | No |
http_proxy | Proxy configuration | No |
Testing Authentication
After configuring the asset:
- Click Test in Swimlane.
- A successful connection confirms:
- The API URL is correct
- The API token is active
- Required API permissions are assigned
Troubleshooting
Authentication issues may occur due to:
- Invalid API token
- Incorrect regional URL
- Insufficient API permissions
- Expired or revoked token
- SSL verification issues
Fix:
- Regenerate the API token
- Verify the correct regional API host
- Ensure the token has proper permissions
- Confirm the token has not expired
- Temporarily disable SSL verification for testing if required
You have successfully authenticated the Trend Micro Vision One connector in Swimlane.
Sources
- Trend Micro Vision One Regional Domains: https://docs.trendmicro.com/en-us/documentation/article/trend-micro-vision-one-regional-domainsο»Ώ
- Trend Micro Vision One API Authentication Documentation: https://automation.trendmicro.com/xdr/api-v3/ο»Ώ
