Securonix Security

Introduction

This guide tells you how to authenticate the Securonix SNYPR connector in Swimlane using HTTP Basic Authentication.

You will obtain Securonix credentials, collect required identifiers, and configure the connector in Swimlane.

Prerequisites

Securonix Access Requirements

You must have permissions to:

Access the Securonix SNYPR platform

Retrieve API endpoint details

Use valid user credentials for API access

Access incident and analytics data (based on role permissions)

Required Credentials

During setup, you will collect:

URL (Securonix SNYPR API endpoint)

Username

Password

Securonix Setup

Take the following steps to retrieve API endpoint URL:

Identify your instance hostname or IP address.

Construct the API base URL in the following format: https://<HOSTNAME_or_IPADDRESS>/Snypr

Verify that the URL is accessible.

Take the following steps to confirm user credentials:

Use an existing Securonix account with API access.

Ensure the account has permissions to:

Query activities

Retrieve incidents

Access policies and users

Verify username and password are active.

Notes on Multi-Tenant (MSSP) Environments

If using MSSP deployment, a tenant name may be required for certain actions (e.g., Retrieve List of Incidents).

Ensure tenant-specific access is configured if applicable.

Connector configuration in Swimlane

From the left-hand navigation pane, click ORCHESTRATION and click Assets.

Asset homepage opens.

Click the plus icon to open the Configure your Connector Asset window.

Select Securonix SNYPR from the Asset type list.

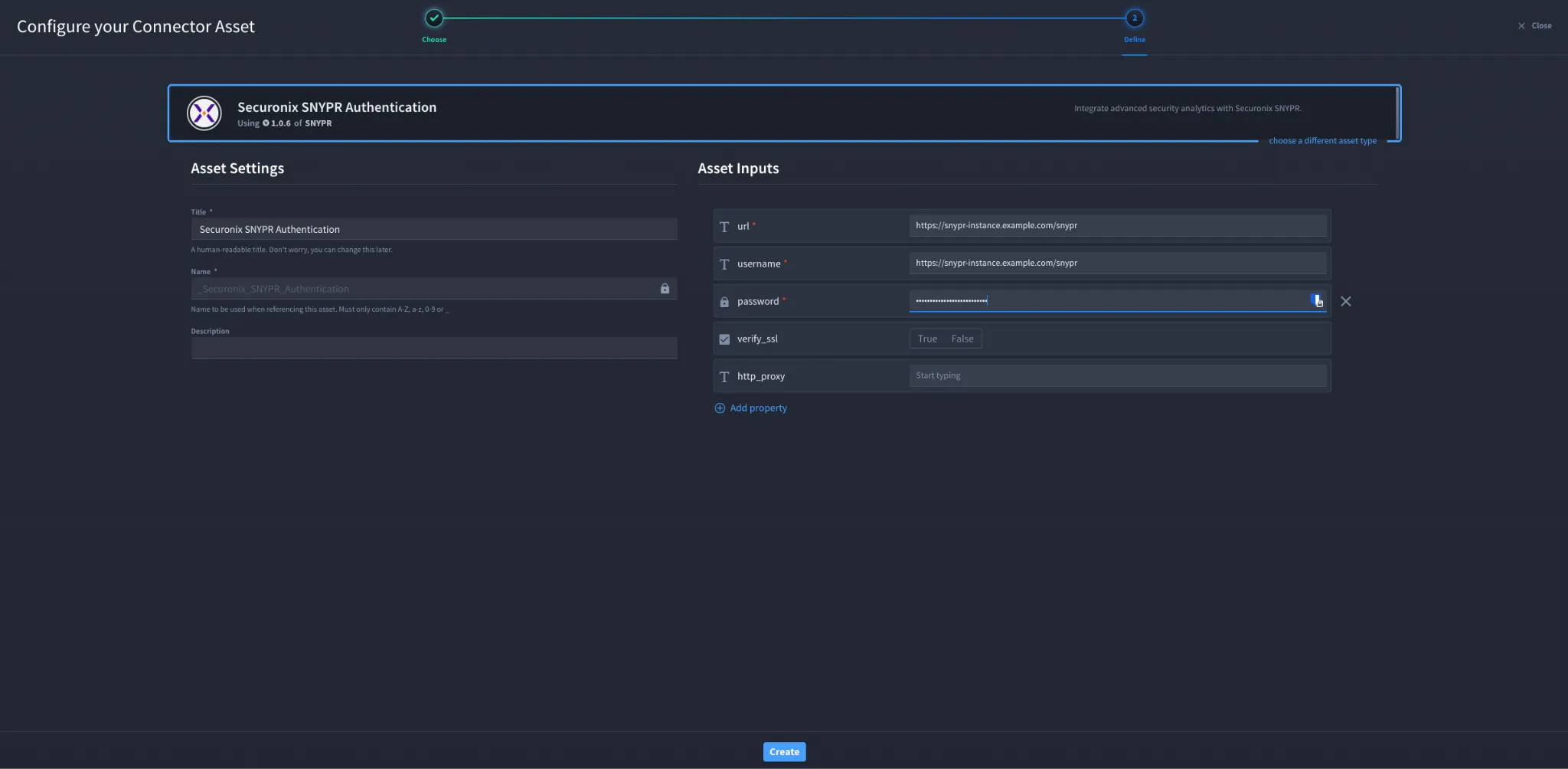

Fill in the Asset Settings and Asset Input as shown:

Configuration – HTTP Basic Authentication

Field	Description	Required/Optional
url	Securonix API base URL (HOST/Snypr format)	Required
username	Securonix username	Required
password	Securonix password	Required
verify_ssl	Enable/Disable SSL Verification	Optional
http_proxy	Optional proxy configuration	Optional

Fields with * marks are required.

Troubleshooting

If authentication fails:

Ensure the URL is correctly formatted (/Snypr suffix required)

Verify username and password are correct

Confirm the user account is active and not locked

Ensure the account has sufficient permissions

Check network connectivity to the Securonix instance

Verify SSL settings if connection issues occur

You have successfully authenticated the Securonix SNYPR Connector in Swimlane.

Sources

Securonix API Documentation: https://documentation.securonix.com
