HAProxy Load Balancer

This topic explains how to use an HAProxy Load Balancer for your Turbine deployment. HAProxy can be run either as a Layer 4 (TCP mode) or a Layer 7 (HTTP-mode). Currently, a Layer 7 load balancer is not supported for the Kubernetes API. However, HAProxy works as a hybrid and provides load balancing for both Layer 4 and Layer 7 applications using a single daemon.

This topic is limited to being an example of how to use HAProxy as a load balancer for Turbine. Configuring the load balancer as described here will result in a non-highly available configuration. HAProxy can be configured with HA and failover capabilities using the same example configuration, but the HA configuration of HAProxy is beyond the scope of this topic.

Both examples in this topic include an enabled HAProxy statistics listener. This can be useful for keeping track of metrics and backend node health. It is accessible over port 8080. It is in no way required and can be disabled by deleting the listener stats sections of the configuration.

Architecture Diagram

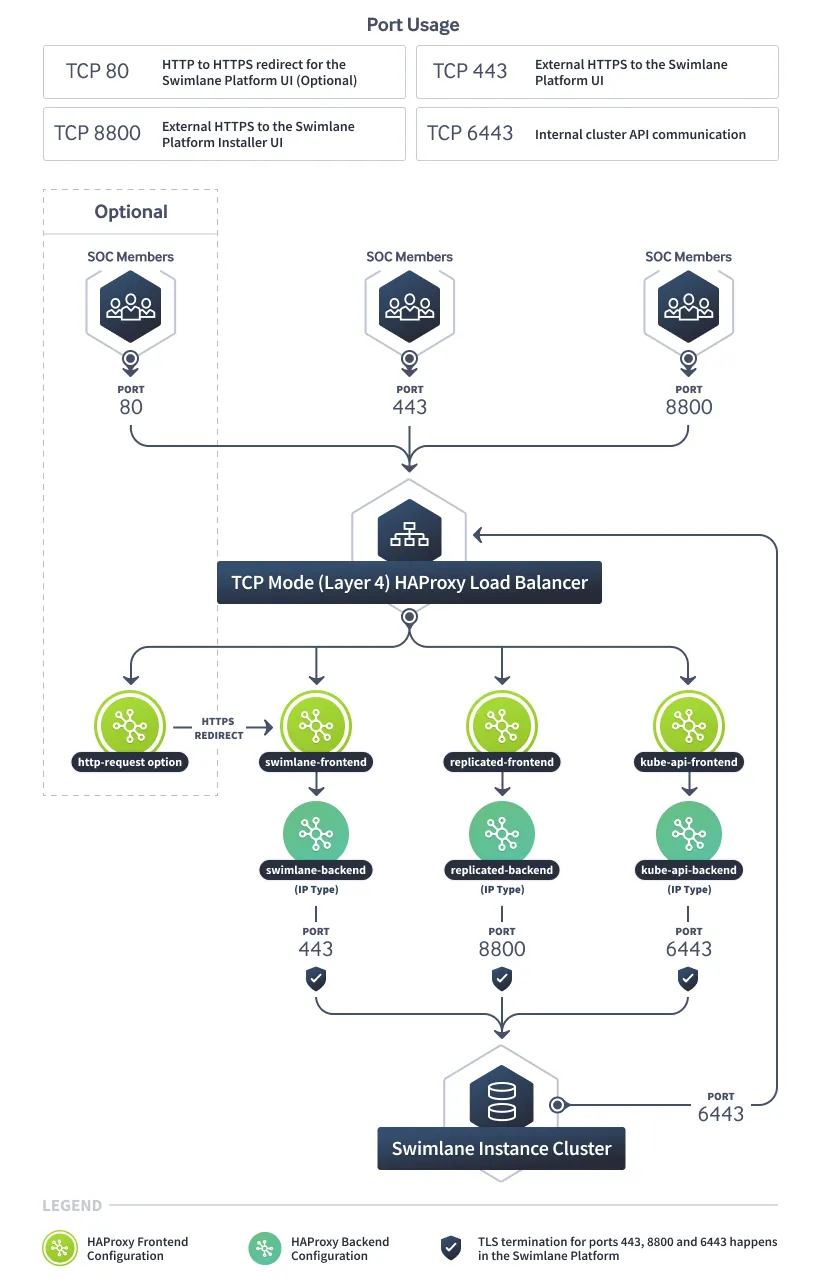

TCP Mode (Layer 4) HAProxy

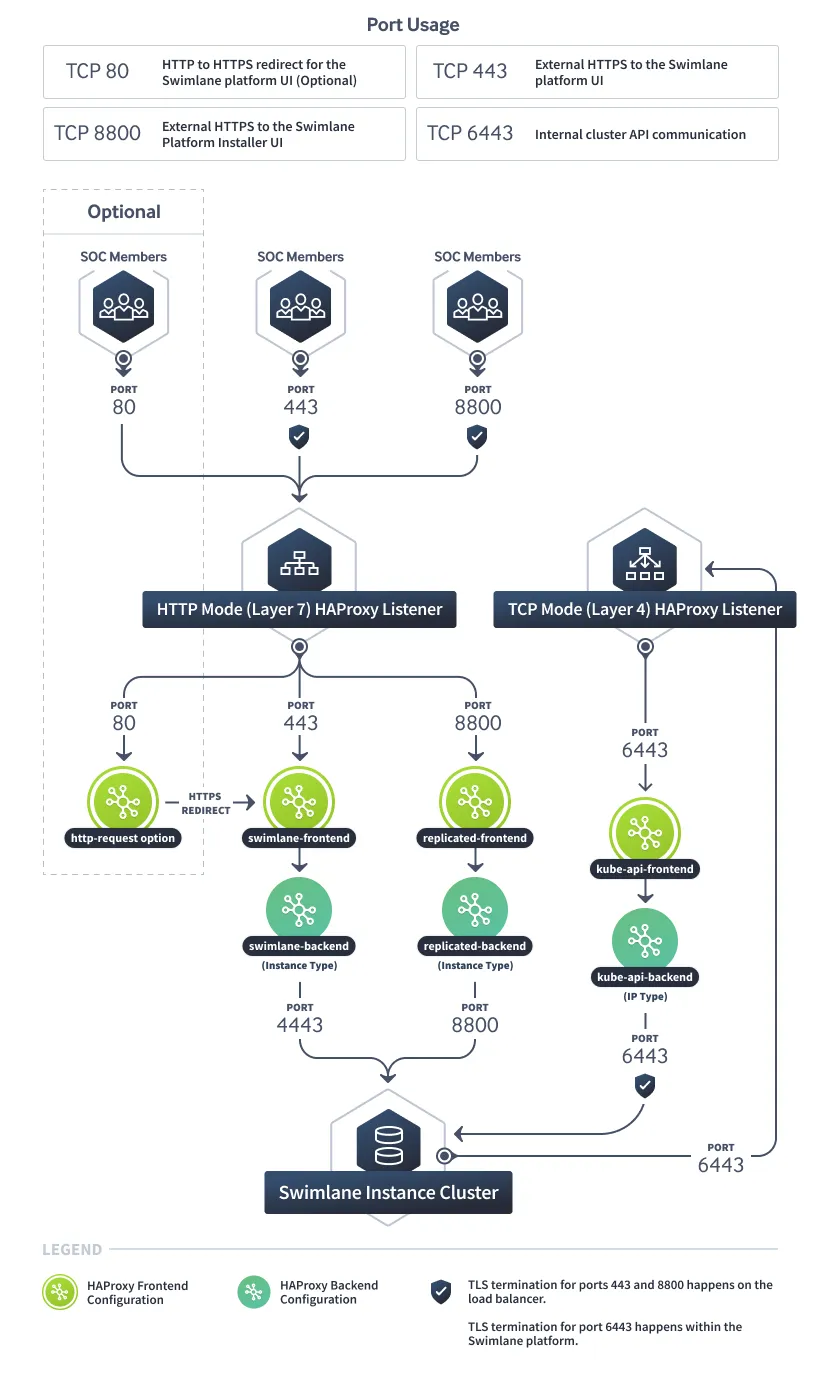

HTTP Mode (Layer 7) HAProxy

Layer 4 (TCP mode) HAProxy Load Balancer

The benefits of TCP mode are in its simplicity. TCP mode simply forwards network traffic at the port level to the configured backend servers. This allows the backend service to control almost all aspects of the communication. For example, TCP mode enables the backend service to provide its own TLS certificate so that SSL doesn't get terminated at the load balancer.

The downside of TCP mode for Turbine's use case is that generally upgrades to the load balancer (ie: whitelisting or blacklisting SSL ciphers) can happen much more quickly in HTTP-mode by the administrator versus waiting for a Turbine release.

Example configuration for a Layer 4 HAProxy server:

################## # GLOBAL OPTIONS # ################## global defaults timeout client 30s timeout server 30s timeout connect 30s listen stats bind *:8080 mode http stats enable stats uri / stats hide-version ## # Turbine Frontend / Backend ## frontend turbine-frontend mode tcp bind *:80 # Optional https redirection bind *:443 http-request redirect scheme https unless { ssl_fc } # Optional https redirection default_backend turbine-backend backend turbine-backend mode tcp balance roundrobin option tcp-check server tpi-node-1 tpi-node-1.swimlane.io:443 check server tpi-node-2 tpi-node-2.swimlane.io:443 check server tpi-node-3 tpi-node-3.swimlane.io:443 check ## # Turbine Platform Installer UI Frontend / Backend ## frontend replicated-frontend mode tcp bind *:8800 default_backend replicated-backend backend replicated-backend mode tcp balance roundrobin option tcp-check server tpi-node-1 tpi-node-1.swimlane.io:8800 check server tpi-node-2 tpi-node-2.swimlane.io:8800 check server tpi-node-3 tpi-node-3.swimlane.io:8800 check ## # Kubernetes API Frontend / Backend ## frontend kube-api-frontend mode tcp bind *:6443 default_backend kube-api-backend backend kube-api-backend mode tcp balance roundrobin option tcp-check server tpi-node-1 tpi-node-1.swimlane.io:6443 check server tpi-node-2 tpi-node-2.swimlane.io:6443 check server tpi-node-3 tpi-node-3.swimlane.io:6443 check

Turbine Configuration

Be sure to select the Enable Included Ingress Controller option on the Turbine Platform Installer UI config tab when using TCP mode.

Port Requirements

The ports to be load balanced in TCP mode are:

Port 443
Port 6443
Port 8800

These ports must be accessible from the load balancer to any node that is a part of the cluster.

Layer 7 (HTTP mode) HAProxy Load Balancer

HTTP-mode load balancers offer more flexibility and more advanced routing capabilities over TCP mode. SSL termination occurs at the load balancer, at which point the load balancer communicates with the backend nodes over the HTTP protocol. Configuration of the load balancer in HTTP-mode is more flexible and allows for a wider range of configuration options that do not rely on a Turbine release.

Be aware that HTTP mode is incompatible with the Kubernetes API. You will need to utilize at least one TCP-mode frontend and backend.

The example below requires an SSL certificate + a key located at /etc/haproxy/server.pem.

Example configuration for a Layer 7 HAProxy server:

################## # GLOBAL OPTIONS # ################## global defaults timeout client 30s timeout server 30s timeout connect 30s listen stats bind *:8080 mode http stats enable stats uri / stats hide-version ## # Turbine Frontend / Backend ## frontend turbine-frontend mode http bind *:443 ssl crt /etc/haproxy/server.pem default_backend swimlane-backend backend turbine-backend mode http balance roundrobin option tcp-check server tpi-node-1 tpi-node-1.swimlane.io:4443 check check-ssl ssl verify none server tpi-node-2 tpi-node-2.swimlane.io:4443 check check-ssl ssl verify none server tpi-node-3 tpi-node-3.swimlane.io:4443 check check-ssl ssl verify none ## # Turbine Platform Installer UI Frontend / Backend ## frontend replicated-frontend mode http bind *:8800 ssl crt /etc/haproxy/server.pem default_backend replicated-backend backend replicated-backend mode http balance roundrobin option httpchk get /healthz server tpi-node-1 tpi-node-1.swimlane.io:8800 check check-ssl ssl verify none server tpi-node-2 tpi-node-2.swimlane.io:8800 check check-ssl ssl verify none server tpi-node-3 tpi-node-3.swimlane.io:8800 check check-ssl ssl verify none ## # Kubernetes API Frontend / Backend ## frontend kube-api-frontend mode tcp bind *:6443 default_backend kube-api-backend backend kube-api-backend mode tcp balance roundrobin option tcp-check server tpi-node-1 tpi-node-1.swimlane.io:6443 check server tpi-node-2 tpi-node-2.swimlane.io:6443 check server tpi-node-3 tpi-node-3.swimlane.io:6443 check

Swimlane Configuration

Be sure to enable the Expose the Swimlane Web service externally option on the Turbine Platform Installer UI config tab when using HAProxy in HTTP mode.

Port Requirements

The ports to be load balanced in HTTP mode are:

Port 4443
Port 6443
Port 8800
